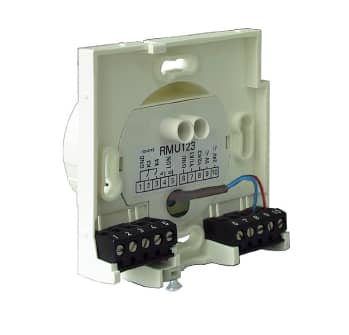

Flush-Mounted Module Technolon RMU123
Supplied by
National Fire Fighting Manufacturing Company
Product Description
- RMU123 is a flush-mounted room module for extending the functions of room controller RCW1xx-L
Application
- Allows 3-level fans to be controlled
- 3 relay outputs for fan coil AC 230 V max
- Flush-mounted room module RMU123 and room controller RCW1xx-L form a device unit
Technical Data
- Nominal voltage: AC/DC 24 V ± 10%
- Outputs: 3 binary outputs (BO), relay contact AC 230 V max.; 3 A for 3-level fans
- Dimensions: WxHxD mm 82.5 x 82.5 x 43
- Connection: Terminal connection, 2.5 mm² max.
Specifications
- Manufacturer:
- Kieback & Peter
- Country of origin:
- Germany
- Housing Material
- Plastic
- Ambient Temperature
- 0 °C to 45 °C
- IP
- 30
- Install Type
- Flush-mounted box
- Weight
- 85 g
