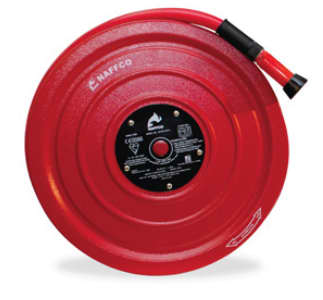

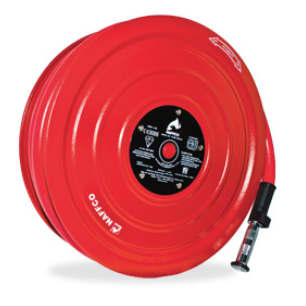

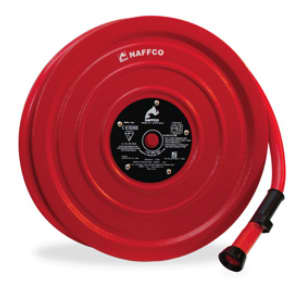

Fire Hose Reel with Semi-Rigid Hose provides a very effective firefighting facility with a continuous supply of water available immediately. The construction and performance of a fire hose reel with semi-rigid hose ensures suitable installation in buildings and other construction works for use by the occupants. The fire hose reels are manufactured in both manual and automatic versions. The fire hose reels are capable of rotating in one plane (fixed type) or rotating in more than one plane with mounting on one of the following: swinging arm, swinging pipe or swinging door in manual and automatic version. The automatic fire hose reels will open fully within 3 revolution of the reel.

• The minimum flow rate of hose reels in JET and SPRAY setting is 41 L/MIN. at 0.6 MPa (6 bar) pressure.
• Setting in chrome platedrotary nozzle is 53Lpm at 0.6 Mpa (6 bar) pressure.
• The effective throw range of discharge at 0.2 MPa (2 bar) pressure is 10 meters. in the JET setting.
• The reel discs are painted RED with printed instructions to use the label.

Dimension (mm)

• Reel Height (A in mm): 665.
• Reel Width (B in mm): 580.
• Reel Depth (C in mm): 245.
