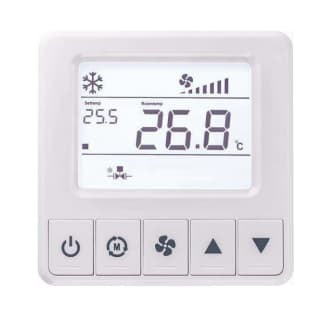

Product Description

The fancoil room controller has been designed for individual control of temperature in commercial, industrial and residential buildings.

Application

• It is tailored for two-pipe fan coil with two-wire electric valves.

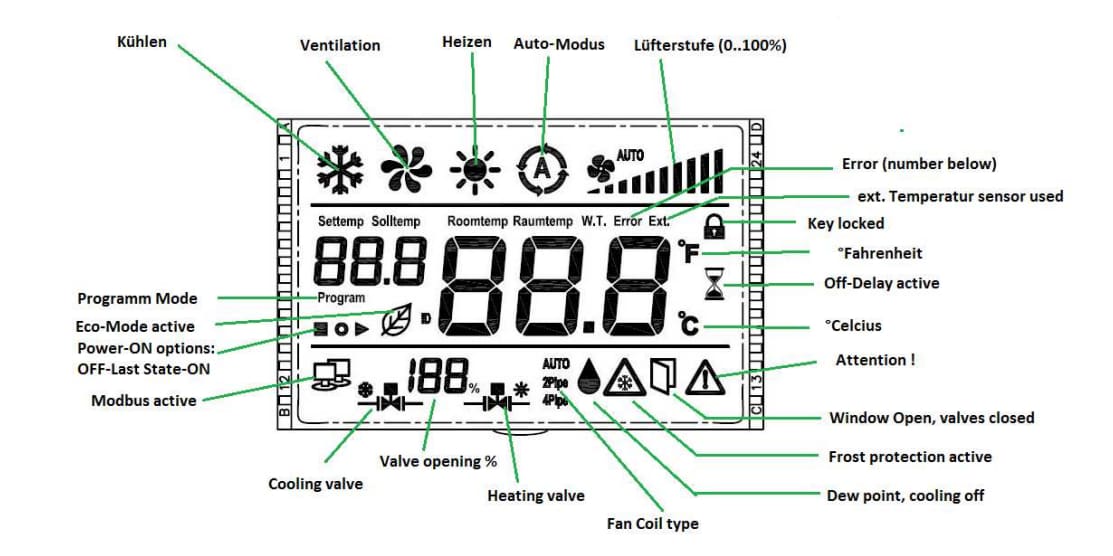

• With its flush-mounted modern design, the device combines digital technology with a large LCD display and additional buttons, which enables the single room controller to be used intuitively.

Technical Data

• Enclosure: ABS, pure white
• Power supply: 24 V
• Cable entry: rear entry
• Connection electrical: terminal block max. 1,5 mm²

Function/Operation

• Communication-section: 1..247
• Factory default: 1
• Address 0: broadcast address
• Communication-Interface: RS485
• Communication-Protocol: Modbus-RTU
• Baud Rate: 4800 bps / 9600 bps / 19200 bps / 38400 bps (optional)
• Factory default: 9600 bps
• Parity: no parity / odd parity / straight parity (optional)
• Factory default: no parity
• Data: 8 bit
• Stop: 2 bit
