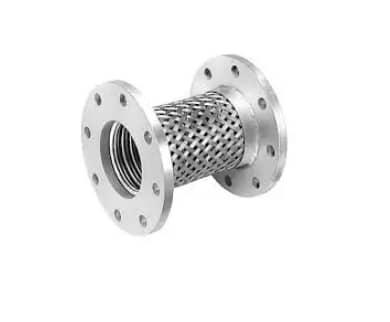

Stainless Steel Expansion Joint JF-500-80

Supplied by: Meaptashi

Stainless Steel Expansion Joint JF-500-80 has reduced noise and vibration transmission and eliminates stress due to thermal expansion and piping misalignment.

  • Nominal Bore(inches): 8
  • Bellows O.D(inches): 9.21
  • Axial Movement(inches): ± 0.60
  • Max. Lateral offset(inches): 0.31
  • Operating Pressure(psig): 150
  • Temperature Range(°F): -122 to +780

Specifications

DATA-SHEET
Manufacturer: Vimco-USA
Model: JF-500-80
Country of origin: United States
Features Easy Field Installation, Corrosion Resistant Materials, Reduces Noise and Vibration Transmission, Vibration Absorption, Piping Misalignment Correction
Length (Inches) 6
