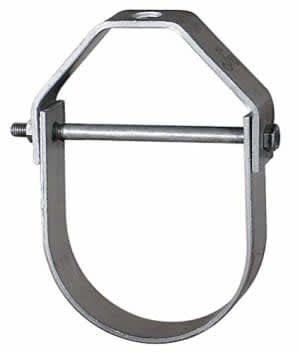

Features and application information

• Suspension of pipes with allowance for vertical adjustment.
• Design allows for vertical adjustment of pipe after installation.
• Complies with Federal Specification A-A-1192A (Type 1)
• Complies with ANSI/MSS SP-58-2009 (Type 1)

Special Features - model PCH

• Design allows for vertical adjustment of pipe after installation.
• Eliminates need for seismic cross-bolt brace. Design includes restraint to keep clevis from collapsing during seismic event.
• Allows easy installation by maintaining vertical alignment of bottom + top members.
• Prevents hanger sag caused by inward movement of upper ends of lower yoke.

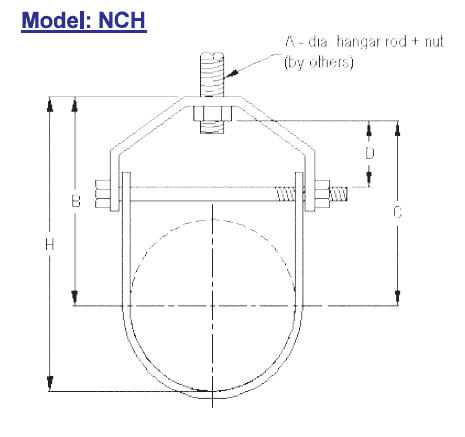

Part Dimension

• A: 3/8
• B: 2 15/16
• C: 2 9/16
• D: PCH- 1 9/16 , NCH- 1 9/16
• H: 3 15/16
