Features and Application Information

1. Support of pipes where longitudinal movement, due to expansion.
2. Design allows for vertical adjustment of pipe after installation.
3. Complies with Federal Specification A-A-1192A (Type 42) and contraction, may occur, and vertical adjustment is required.
4. Complies with ANSI/MSS SP-58-2009 (type 41)

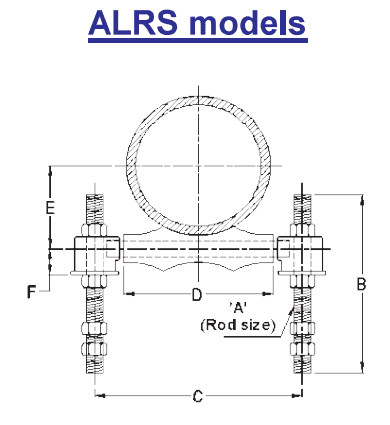

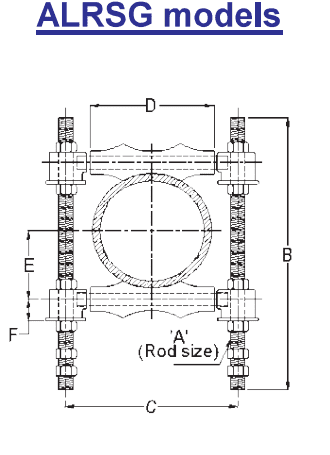

Part Dimension (inches)

• A - 1 1/2
• B - ( ALRS- 24)
• C - 35
• D - 30 1/4
• E - 17 1/4
• F - 2 1/4
