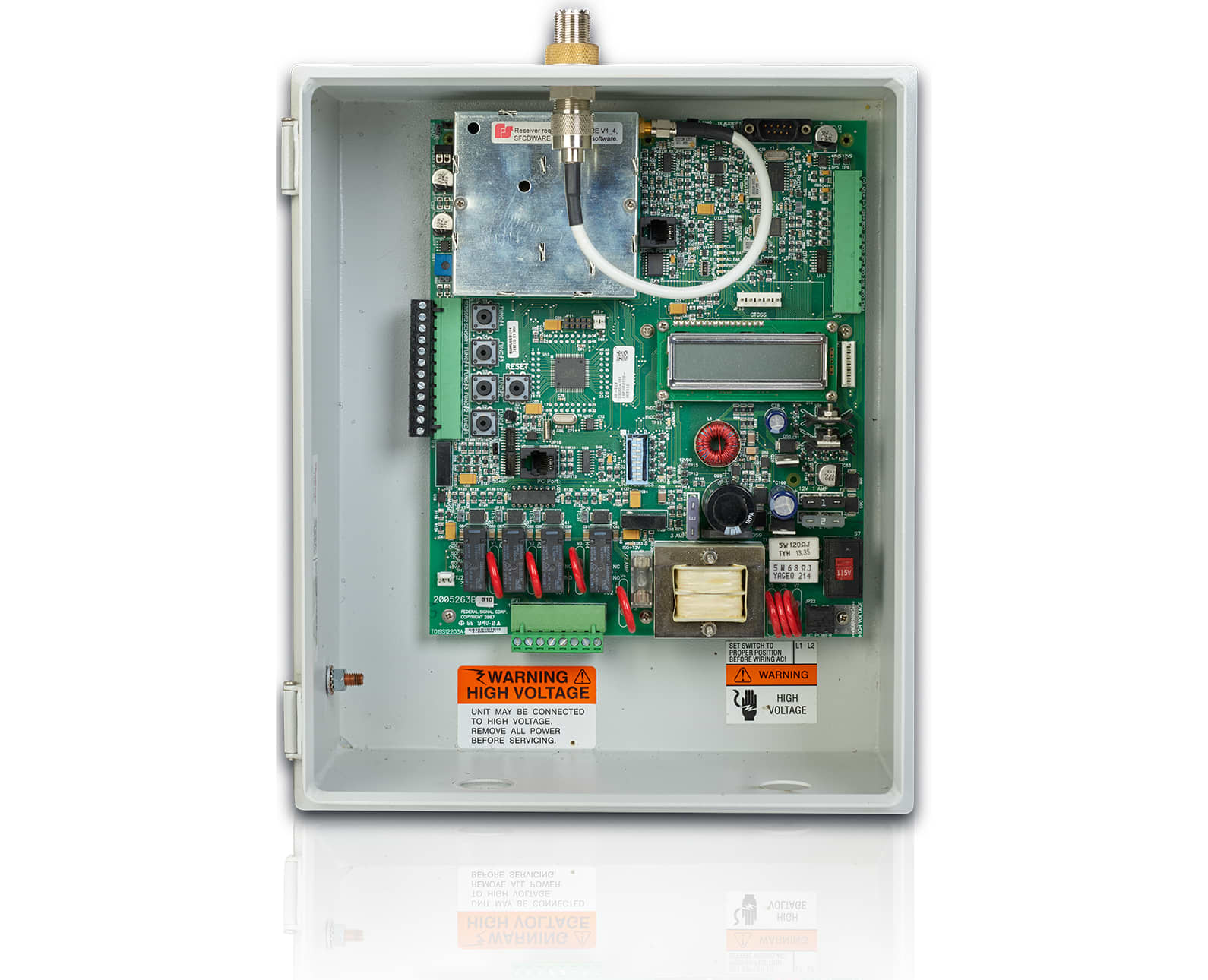

The FC Controller is a remote-control activation point for equipment control (such as electro-mechanical sirens) with relay outputs. The FC Controller is equipped with a FCX Controller board which can be powered from 12VDC, 48VDC, 120VAC or 220VAC. The use of SFCD Software and SS2000+ allows remote control activation of multiple FC Controllers.

The Federal Controller is an ideal choice to control Eclipse8 and Model 2 siren series, radio activation of indoor PA systems, warning lights or various warning equipment, and firehouse alerting applications.

Details:

• AC Input Voltage: 120 or 240VAC ±10%, 60Hz
• Number of Remote Activation Inputs: 4
• Temperature: -22°F to 149°F / -30°C to 65°C
• Humidity: 0-98% non-condensing
