Well Point Dewatering Pump - ECD
Supplied by
C.R.I. Pumps Free Zone Company

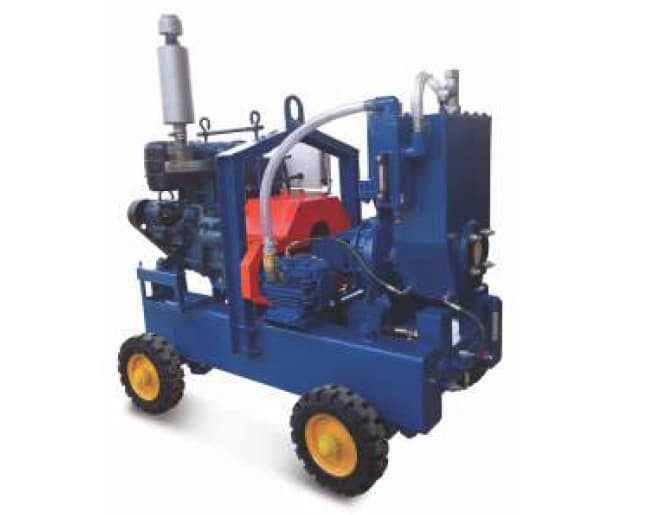

ECD Series pumps are designed for well point de-watering applications. These pumps can be coupled with engine/motor and mounted on a skid with the trailer for easy mobility. These pumps are supported with the vacuum pump to facilitate auto self-priming
Features
Easy removal of clogs, can be fitted on the trolley and use it for mobile dewatering purposes, a vacuum pump is fitted to avoid frequent priming
Specifications
Max. solid size: 25 mm
Specifications
- Manufacturer:
- C.R.I. Pumps Free Zone Company
- Country of origin:
- India
- Available Sizes
- 4”, 8”, 12”
- pH Value
- 5 to 9
- Max Liquid Temperature
- 60C
- Head Range
- 22 m to 30 m
- Max Operating Pressure
- 16 kg/cm
- Power Range
- 11kW to 82.5kW
- Discharge Range
- 115 m3/h to 1200 m3/h
