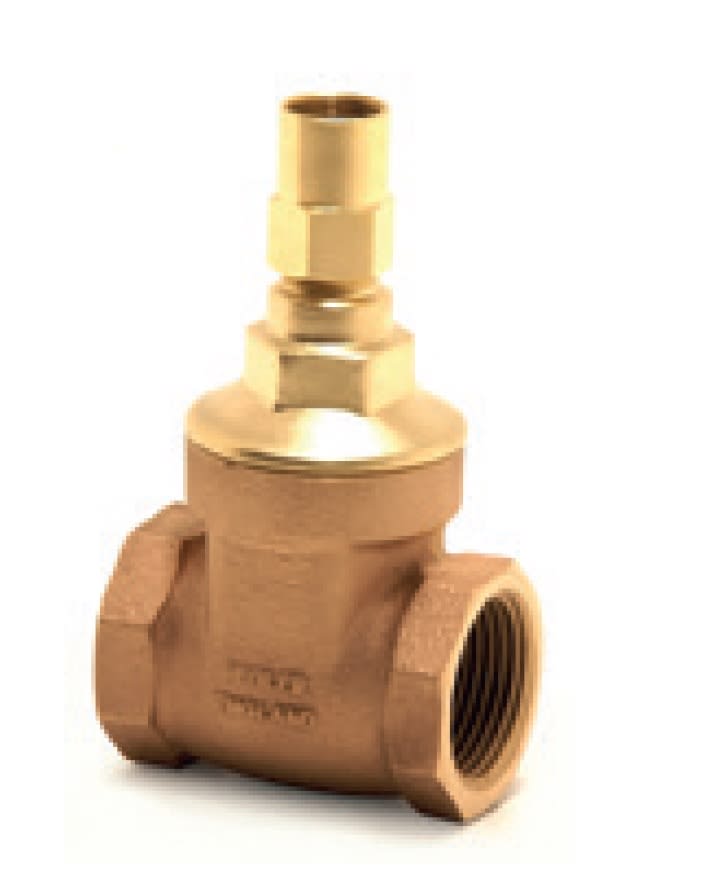

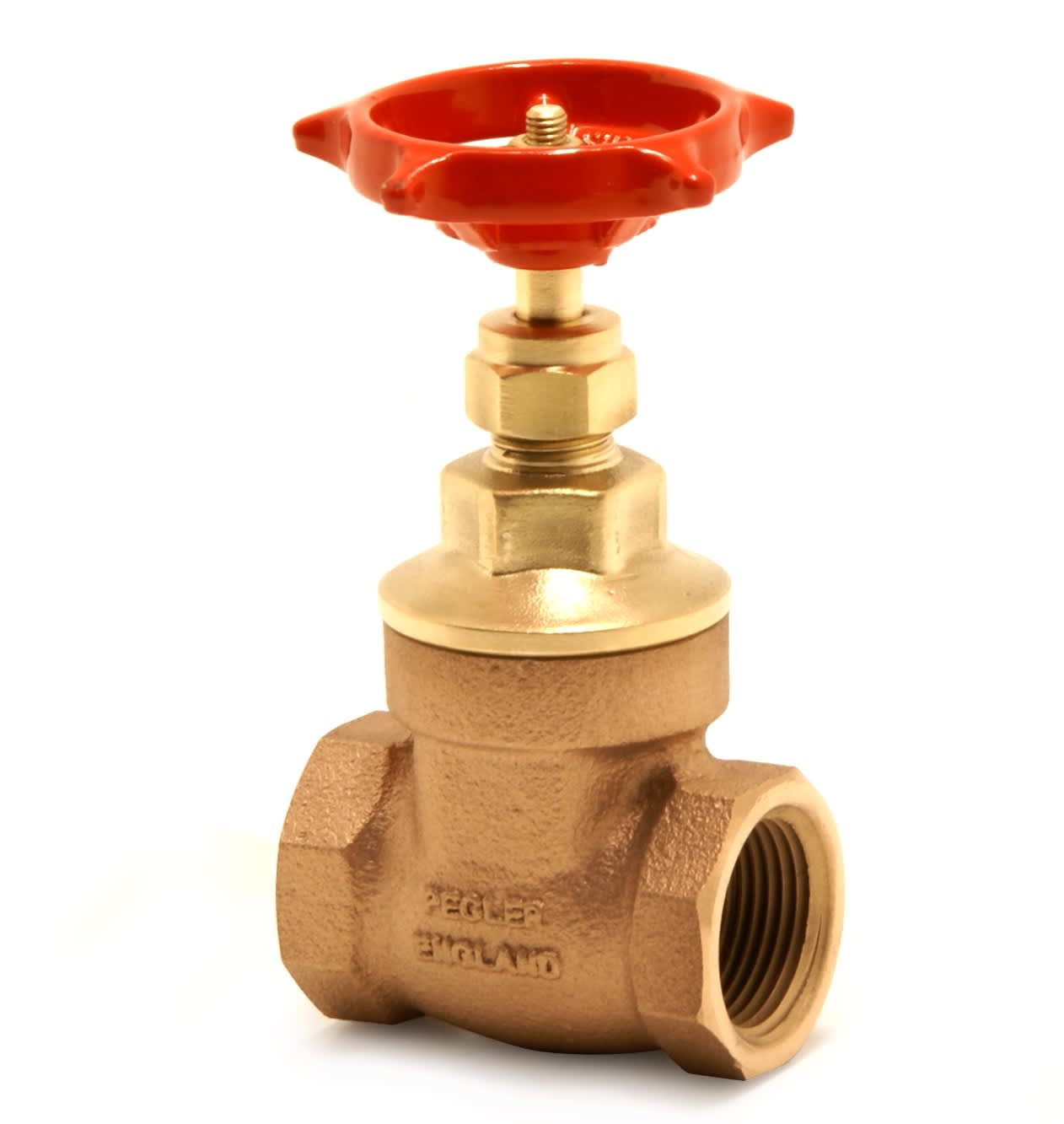

Gate Valve 1070/125
Supplied by:
Pegler Yorkshire
Gate valve 1070/125 comes with BS5154 PN20 series B. It has a non rising stem with high quality lubricated packaging and can be re-packed under pressure.
- Body: Gunmetal
- Bonne: Forged Brass (1/4" to 3") Gravity Die Cast Brass (4")
- Stem: Brass Bar
- Wedge: Gunmetal
- Stem Ring: Brass Bar
- Gland: Brass Bar
- Gland Nut: Brass Bar (1/4" to 1") Forged Brass (1.1/4" to 4")
- Handwheel: Aluminium
- Handwheel Nut: Brass Bar
- Gland Packing: PTFE
- Rating Disc: Aluminum
- Guarantee: 5 years
Specifications
| Manufacturer: | Pegler |
| Model: | 1070/125 |
| Country of origin: | United Kingdom |
| Max Pressure | 290 PSI |
| Body Construction | Bronze Gun Metal |
| Type: | PN 20 |
| Temperature Range | -10°C + 180°C |
| Max Temperature | +180 °C (20 Bar) |
| Application | Water, Oil, Steam |
| Dimensions | DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100 |
| Operating pressure | 20 bar |
| Color | Bronze |
| Material | Bronze |
| Type | Gate Valves |
| Pressure - Shell (Bar) | 30 |
| Pressure - Seat (Bar) | 22 |
