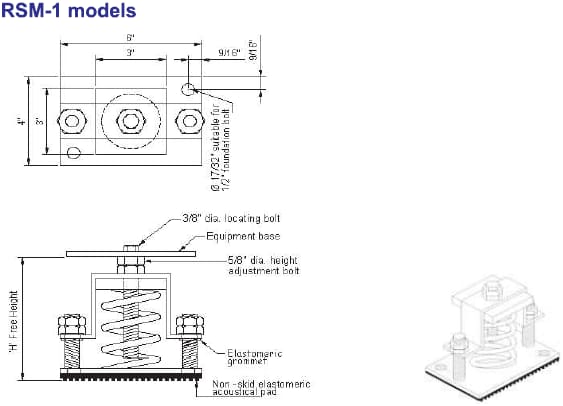

Vertically Restrained Spring Mount RSM-1-081
Supplied by:
Meaptashi
Additional Details
- Applications requiring vertical restraint due to reduced equipment loads or large external forces e.g. wind
- Mounting holes furnished as standard
- Elastomeric 'non-short circuiting1 grommets
- Built-in leveling device
- Spring elements color-coded for easy field verification
H: 6-1/2"
Specifications
| Manufacturer: | Vimco-USA |
| Model: | RSM-1-081 |
| Country of origin: | United States |
| Load Range (lbs) | 1 to 40 |
| Features | Welded Steel Construction, Galvanized Finish |
