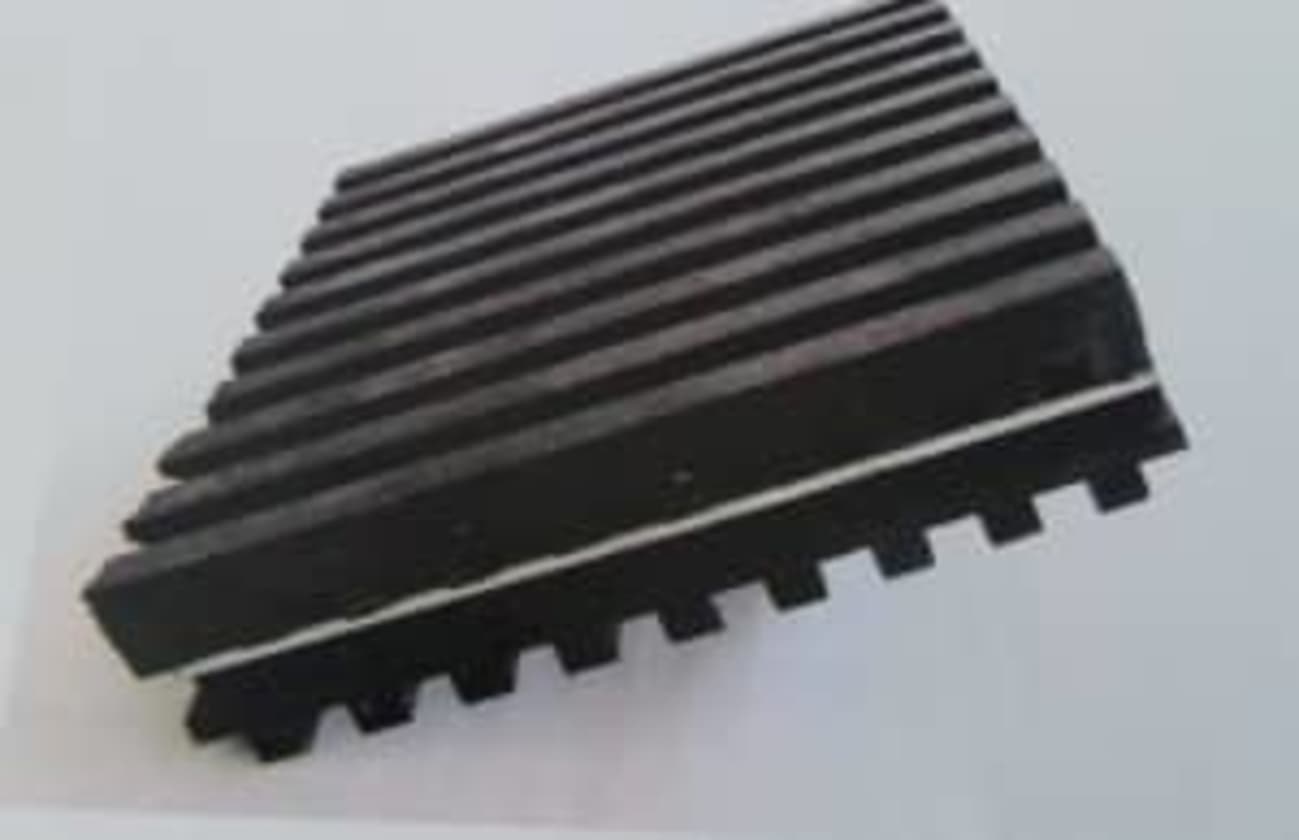

Vibration Isolation Pads SRMP-2R0404
Supplied by:
Meaptashi
Additional details:
- Wherever bolting is to be avoided and minor, non-critical vibration conditions exist (pumps, motors, a/c units, generators etc.).
- High-quality ozone + water resistant elastomer
- Maximum loading: 60 psi
- Material: 55 duro elastomer blend, Galvanized steel plate
Specifications
| Manufacturer: | Vimco-USA |
| Model: | SRMP-2R0404 |
| Country of origin: | United States |
| Features | Simple Field Installation |
| Max Load (lbs) | 960 |
| Deflection | .22" |
| Size | 4" x 4" x 13/16" |
