Technolon Room Controller RCW116-L

Product Description

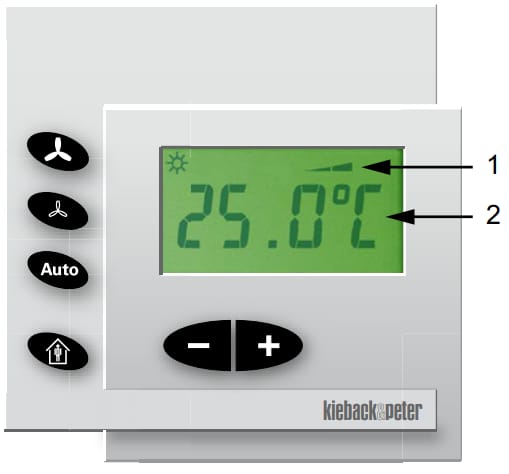

RCW116-L technolon room controller with LCD and operating unit, used for adjusting the room temperature setpoint with Occupancy button and for three-level fan control

Application

Technolon Room Controller RCW116-L is for individual room temperature control via radiator, heating/cooling ceiling, or fan coil systems with a temperature sensor, back-lit LCD, and operating unit.Can be used either as a stand-alone room controller or as part of a LON network. Standard software application that complies with LonMark profile 8020 “Fan Coil Unit.

Room controller with pre-set standard configuration. A total of 9 standard applications can be selected using the LON plug-in. 2 outputs for control valves (configurable as either 0 V to 10 V or as binary outputs for thermoactuators), 2 voltage-free binary inputs. Functional extension through RMU123 accessory for direct control of 3-stage fans of up to AC 230 V max., or analog control of heating/cooling ceilings.

Technical Data

• Nominal voltage: AC/DC 24 V ± 10%; 100 mA
• Measuring range: 0 °C to 45 °C
• RCW116-L controls: Button, controls the fan speed On/Off, Button, fan in automatic mode, also adjusts the room temperature setpoint.
• Measuring system: Integrated digital room sensor
• Housing Color: RAL9010 (pure white), other colors available on request
• Dimensions: WxHxD: 82.5 x 82.5 x 28.3 mm
• Connection: Terminal connection, max. 2.5 mm²
