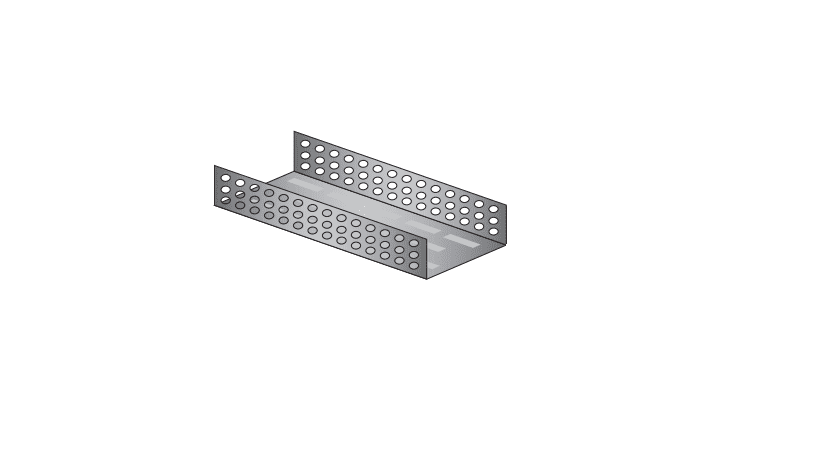

Steel Lintel Proline 250U
Supplied by
Cartel Manufacturing Company
Steel Lintel Proline 250U is used to replace conventional casting of concerts lintels over door openings. Lightweight lintels are manufactured using steel of galvanized coating type z275 for anticorrosion.
Lengths (L): 900-1200
- Height (H): 50, 75
- Material Thickness: 2, 3, 4
- Safe Distributed Loading (tonnes): 0.62, 0.89, 1.27, 1.70
- Total Width (W): 253
Lengths (L): 1300-1500
- Safe Distributed Loading (tonnes): 0.48, 0.61, 0.72, 1.28

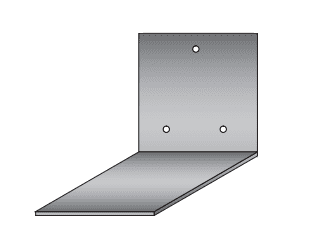

- Lintel Brackets: A=250
Lengths (L): 1600-1800
- Safe Distributed Loading (tonnes): 0.44, 0.59, 1.04
- Lintel Brackets: B=150
Lengths (L): 1900-2100
- Safe Distributed Loading (tonnes): 0.41, 0.92
- Lintel Brackets: C=200
Lengths (L): 2200-2400
- Safe Distributed Loading (tonnes): 0.32, 0.70
- Lintel Brackets: D=6
Specifications
- Manufacturer:
- Cartel Manufacturing Company
- Model:
- 250U
- Country of origin:
- UAE
- Standards
- BS EN 10142:1991, BS EN 10142: ASTM-A525, BS EN 10142: JIS.G3302
- Height (mm)
- 50, 75
- Material Thickness
- 2, 3, 4
- Total Width (mm)
- 253
- No. & Diameter of Anchors
- 4M10x80
