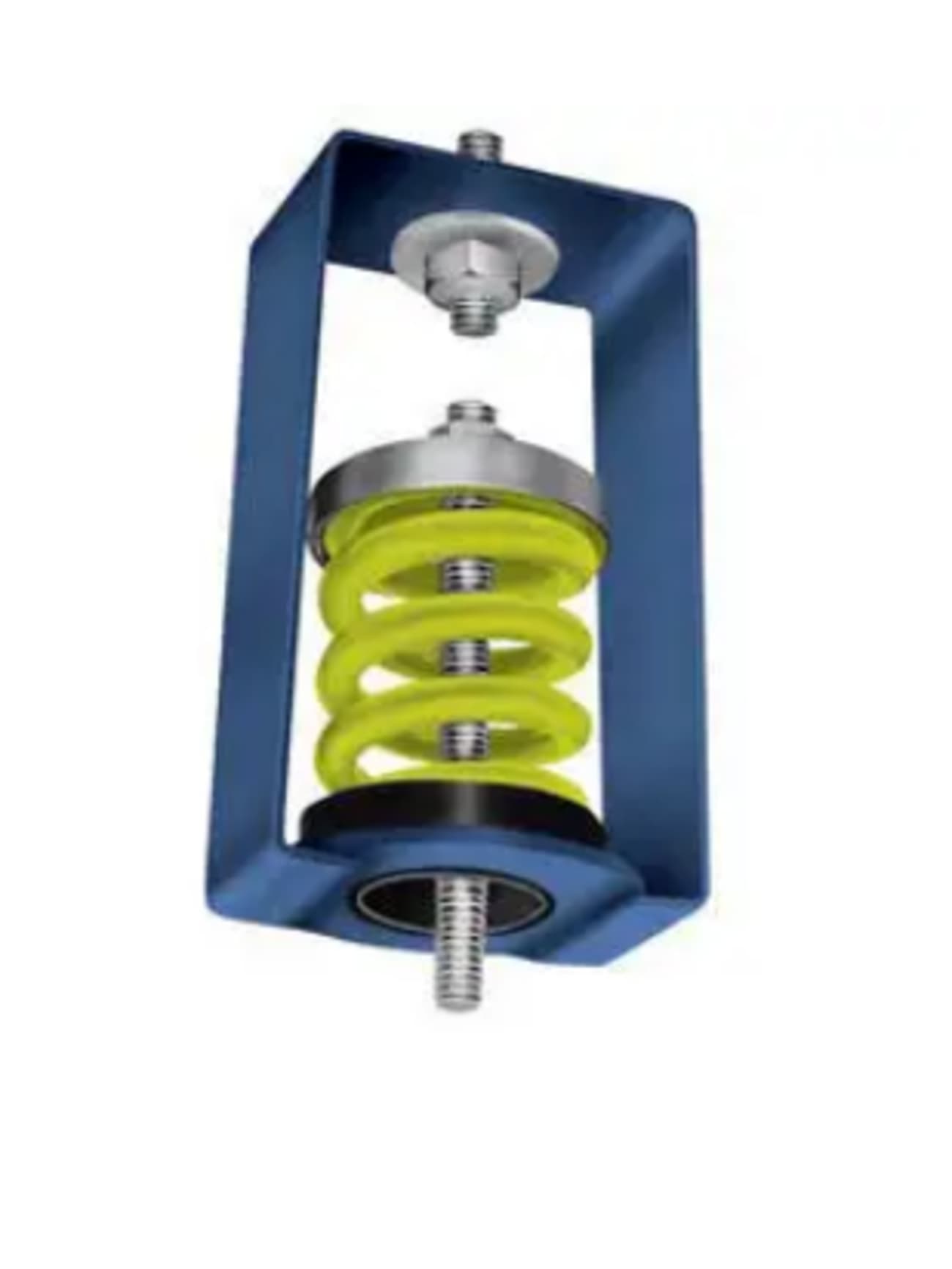

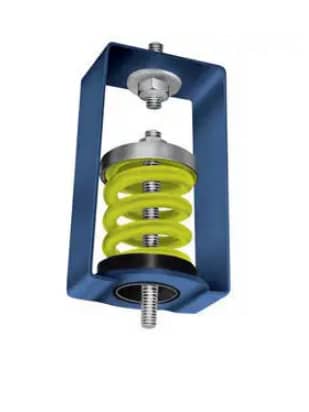

Spring Hanger HSF/OHSF-045
Supplied by:
Meaptashi
Additional Information:
- Spring Elements color-coded for easy field verification.
- Load distribution steel washer.
HSF Dimension:
- A: 3.47"
- B: 2.15"
- C: 1.5"
- D: 1/2"
- E: 23°
- H: 2.3"

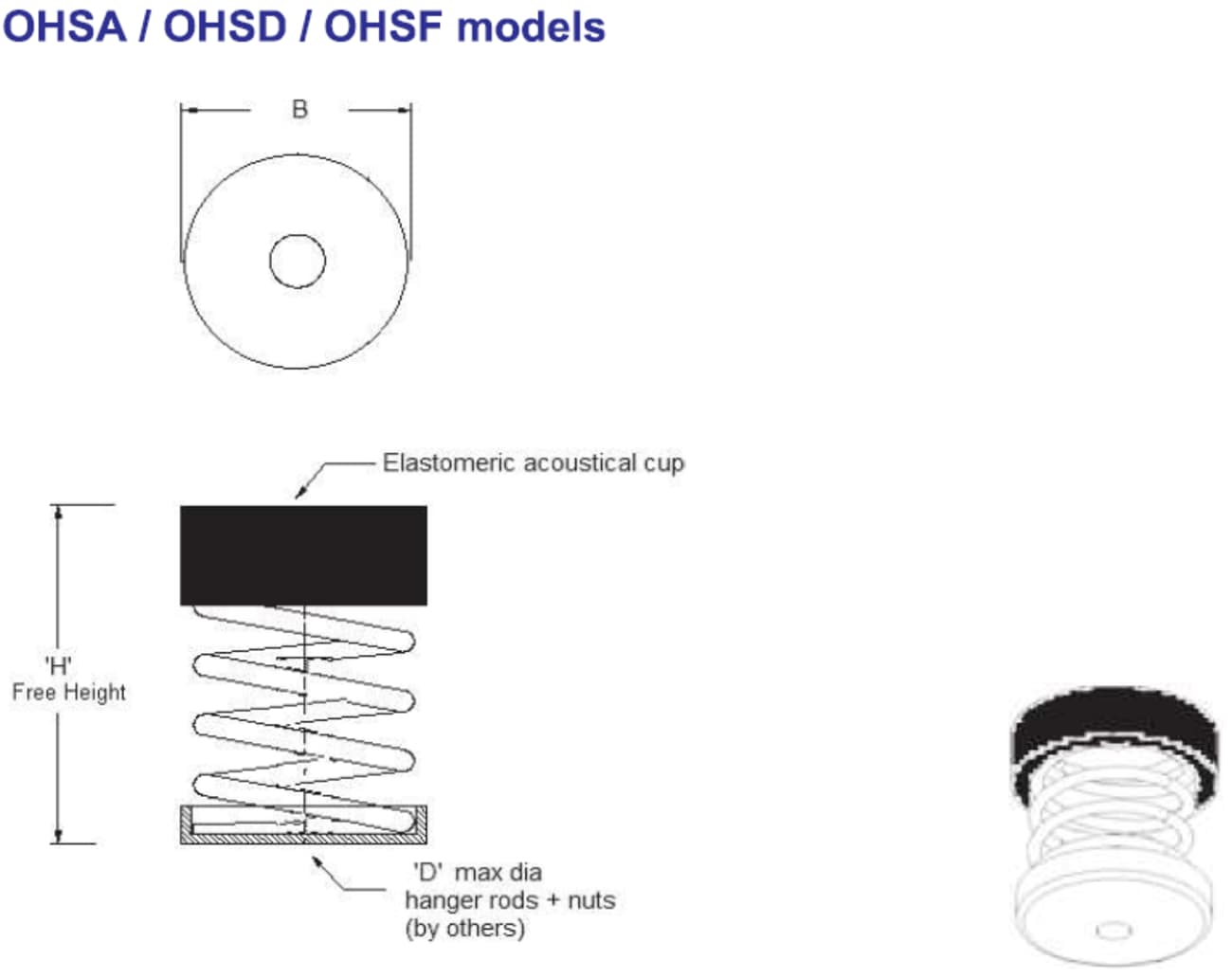

OHSF Dimension:
- A: N/A
- B: 1-1/2"
- C: N/A
- D: 3/8"
- E: 23°
- H: 2-9/16"
Specifications
| Manufacturer: | Vimco-USA |
| Model: | HSF/OHSF-045 |
| Country of origin: | United States |
| Features | Powder Coated Steel Bracket |
| Deflection | 1" |
| Load Range (lbs) | 91 to 185 |
