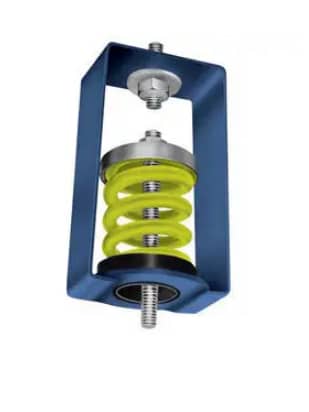

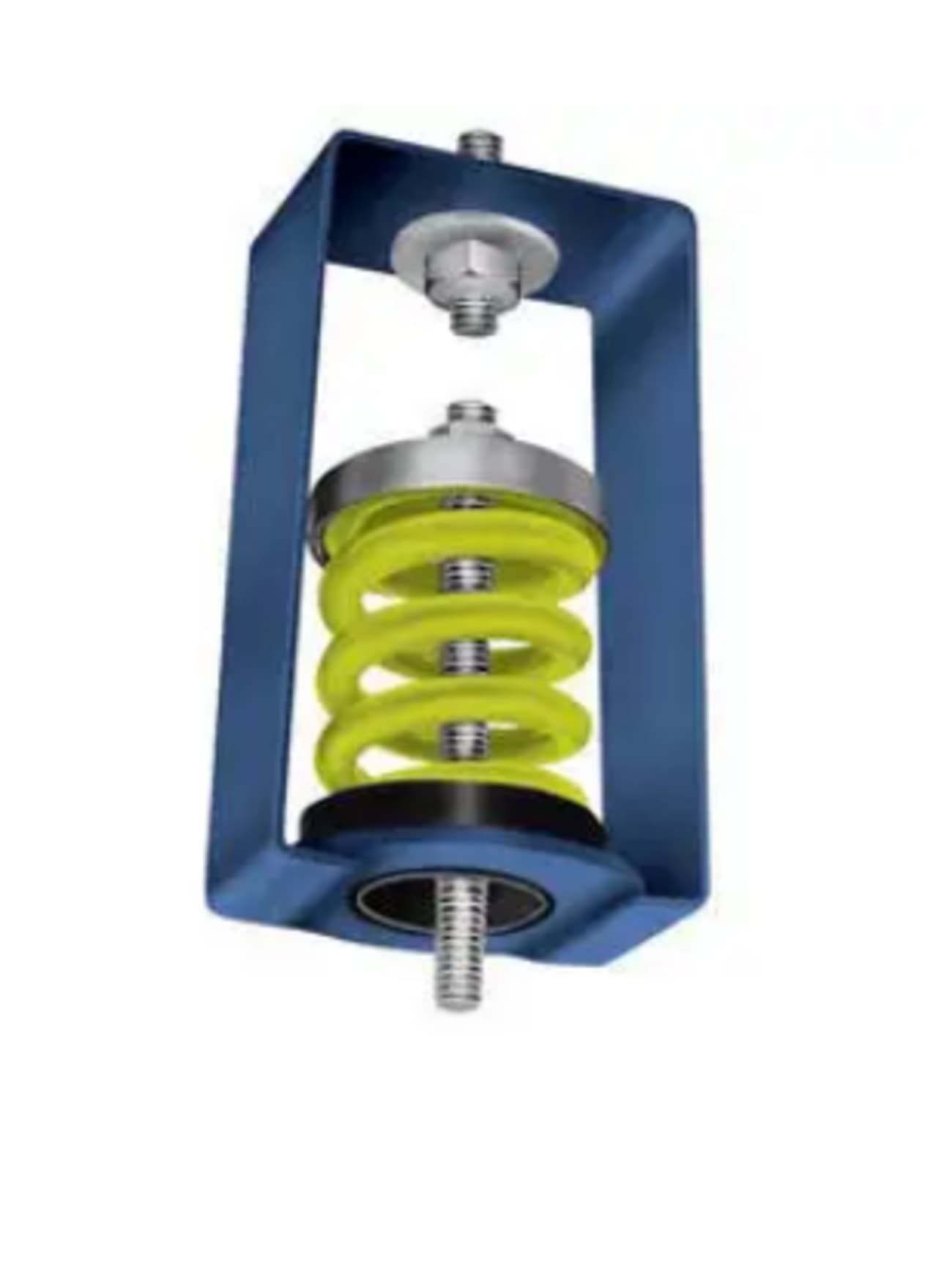

Spring Hanger HSF/OHSF-042
Supplied by
Meaptashi
Additional Information:
- Spring Elements color-coded for easy field verification.
- Load distribution steel washer.

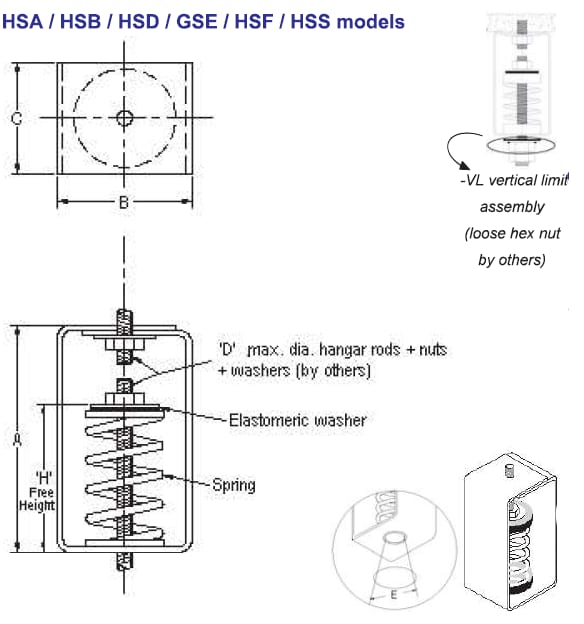

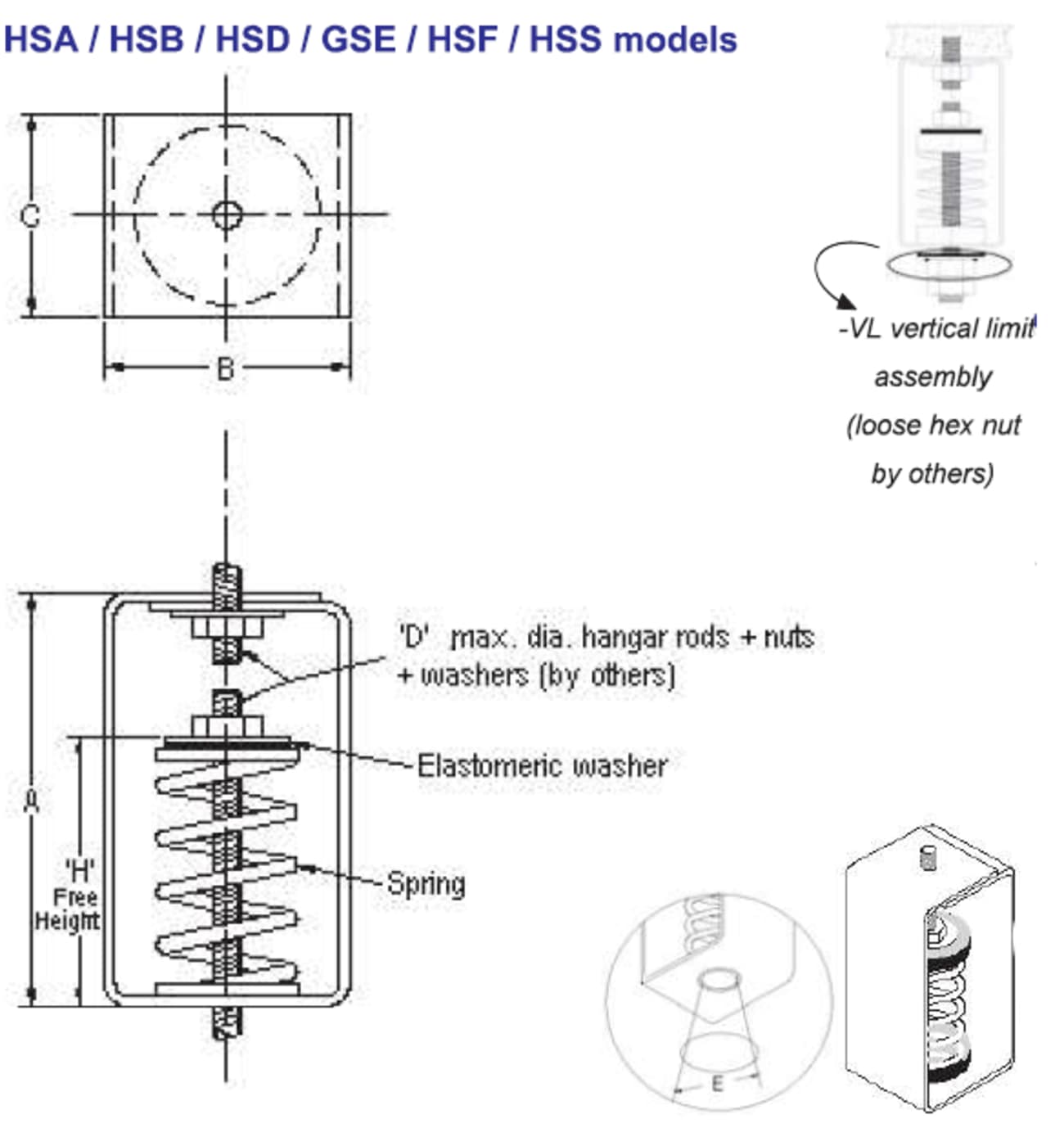

HSF Dimension:
- A: 3.47"
- B: 2.15"
- C: 1.5"
- D: 1/2"
- E: 23°
- H: 2.3"

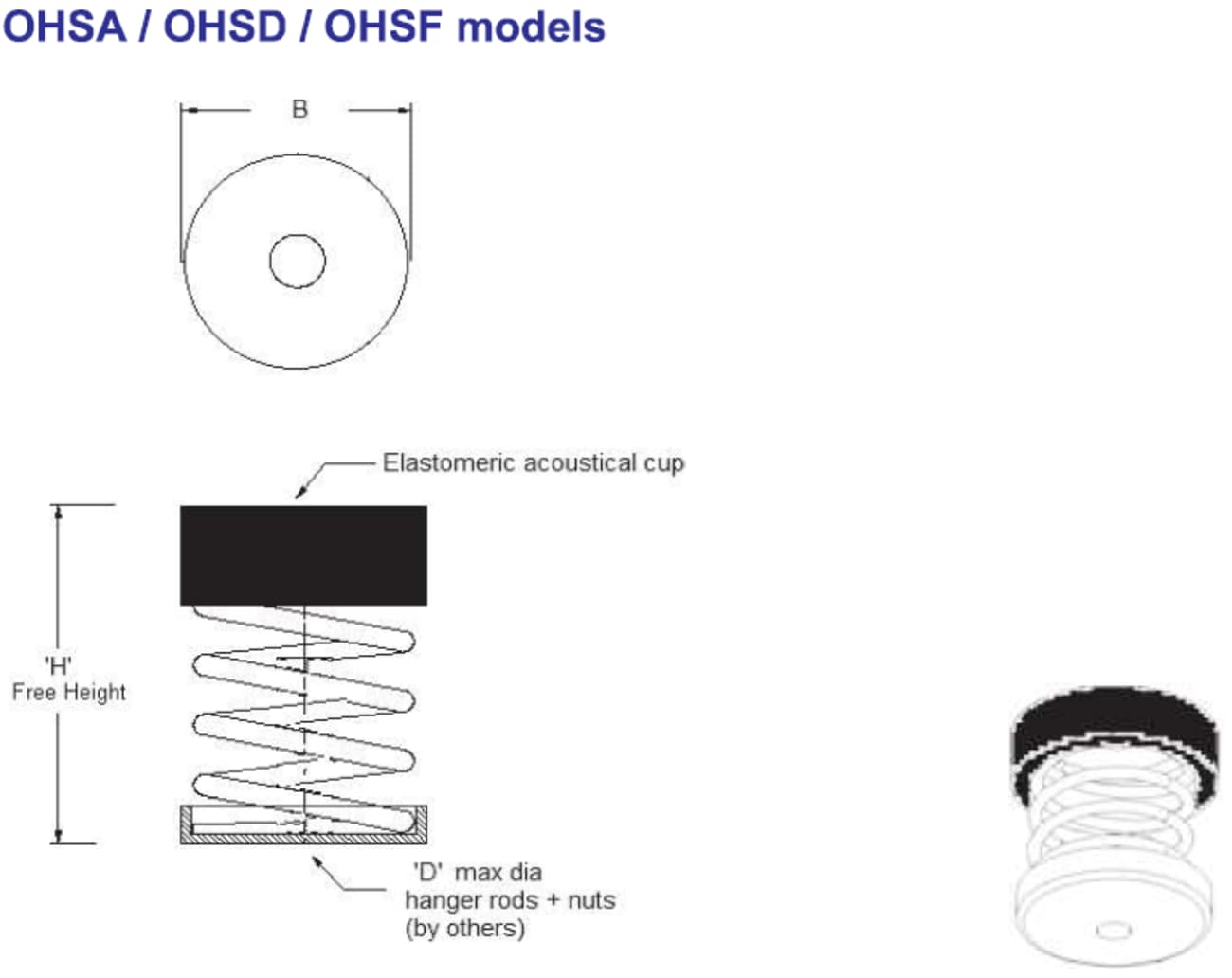

OHSF Dimension:
- A: N/A
- B: 1-1/2"
- C: N/A
- D: 3/8"
- E: 23°
- H: 2-9/16"
Specifications
- Manufacturer:
- Vimco-USA
- Model:
- HSF/OHSF-042
- Country of origin:
- United States
- Features
- Powder Coated Steel Bracket
- Deflection
- 1"
- Load Range (lbs)
- 16 to 35
