Sonnex® Multiroom Audio System

Supplied by Pandre Group

Advanced multiroom audio distribution for homes and businesses
Robust, high-efficiency audiophile grade amplification built in
140 Watts/Ch. @ 8 Ohms, 400 Watts/Ch. bridged
Provides eight amplified stereo zone outputs
Provides two additional SPDIF stereo zone outputs
Additional line-level, SPDIF, and “CH” CAT5 balanced outputs available [2]
70/100 Volt “constant-voltage” output options available
Output Bussing — enables linked operation of multiple adjacent zones
Bridgeable outputs — Affords extra power for pools and other large areas
Sonnex® Link — Provides a one-wire, plug-and-play interface to eight SWAMPE expanders up to 200 feet (61 meters) away [1,3]
Sonnex Link over Fiber option enables distances up to 2000 feet (610 meters)
Includes 12 unbalanced, 4 balanced/unbalanced, and 8 SPDIF inputs
Allows audio return channel capability and extension of line-level and SPDIF signals using AUD-EXT Audio over CAT5 Extenders
User adjustable volume, bass, treble, loudness, and selectable “tone profiles”
Installer adjustable 5-band graphic or parametric EQ per zone
Dynamic Range Control — Maintains even listening levels in both quiet and loud ambient environments
Speaker Profiles — Allows easy upload of custom preset speaker settings
Sonnex Speaker ProtectTM—Affords extra headroom while preventing component damage
Individual zone power control and global standby
Remote fault monitoring

Specifications

Manufacturer:: Crestron
Model:: SWAMP-24X8
Country of origin:: United States

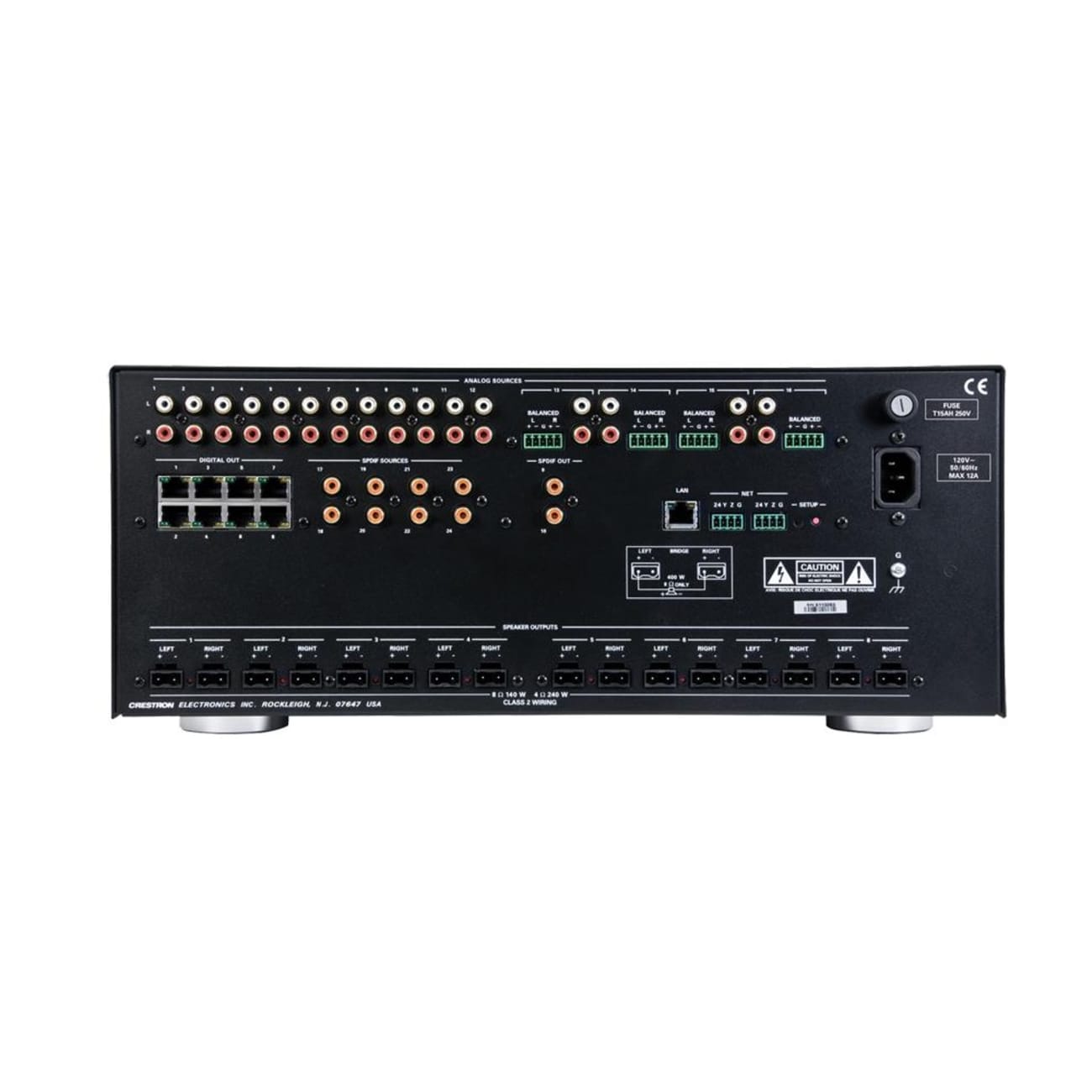

Connectors: Speaker Out, Digital Out, SPDIF In, SPDIF Out, LAN, USB, Analog In
Zones: 74
Channels: 24
Output Power: 140W @ 8Ω, 240W @ 4Ω, 400W @ 8Ω (bridged)
Form Factor: 4U
