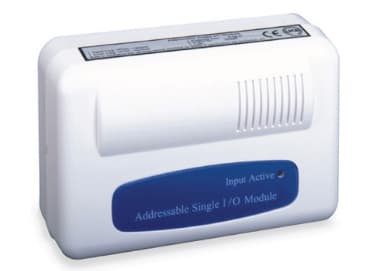

Single Input/Output Module AI-510

Single input/output module with a microprocessor is an addressable single I/O module communicate with fire alarm control panel (FACP), monitor power supply, control output and indicator. The module closes the output relay and illuminates the indicator when receiving start command from FACP.

Features:

Electronically addressed. The address can be modified in field.
Built-in microprocessor processes messages intelligently.
Insulation technology for input signal, good ability of anti-interference..
Monitoring power supply.
Plug-in structure.

Specification:

Operating Voltage Loop: 24V (16V~28V)
Power: 24VDC (20VDC~28VDC)
Standby Current Loop: ≤1mA
Power: ≤2mA
Action Current Loop: ≤3mA
Power: ≤15mA
Output Capacity: Output contact capacity is 24VDC/5A
Voltage output capacity: 24VDC/1A
Output Control Type: Dry contact output
Programming Method: Electronically addressed
Code Range: One address within 1~242.
Indicator: Red, flashes when polling, illuminates in action
Operating Temperature: 0°C～+49°C
Relative Humidity: ≤93%, non condensing
Material and Color of Enclosure: ABS, White (RAL 9016)
Dimension (L×W×H): 120mm×80mm×39mm (with base)
