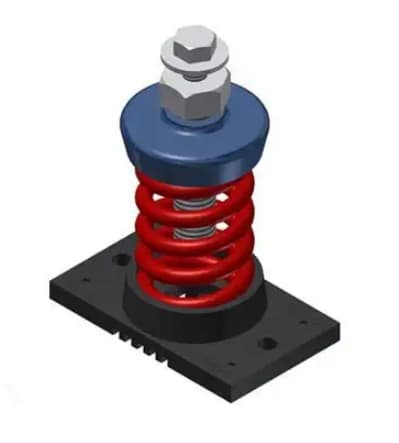

Seismic Restrained Spring Vibration Mount SSMB/SSM-1-147
Supplied by:
Meaptashi
Features and Application Information:
- Large diameter laterally stable springs
- Mounting holes furnished as standard
- All isolators certified to withstand minimum 1.39 G force
- Suitable for most seismic zone IV applications
- Spring elements color-coded for easy field verification

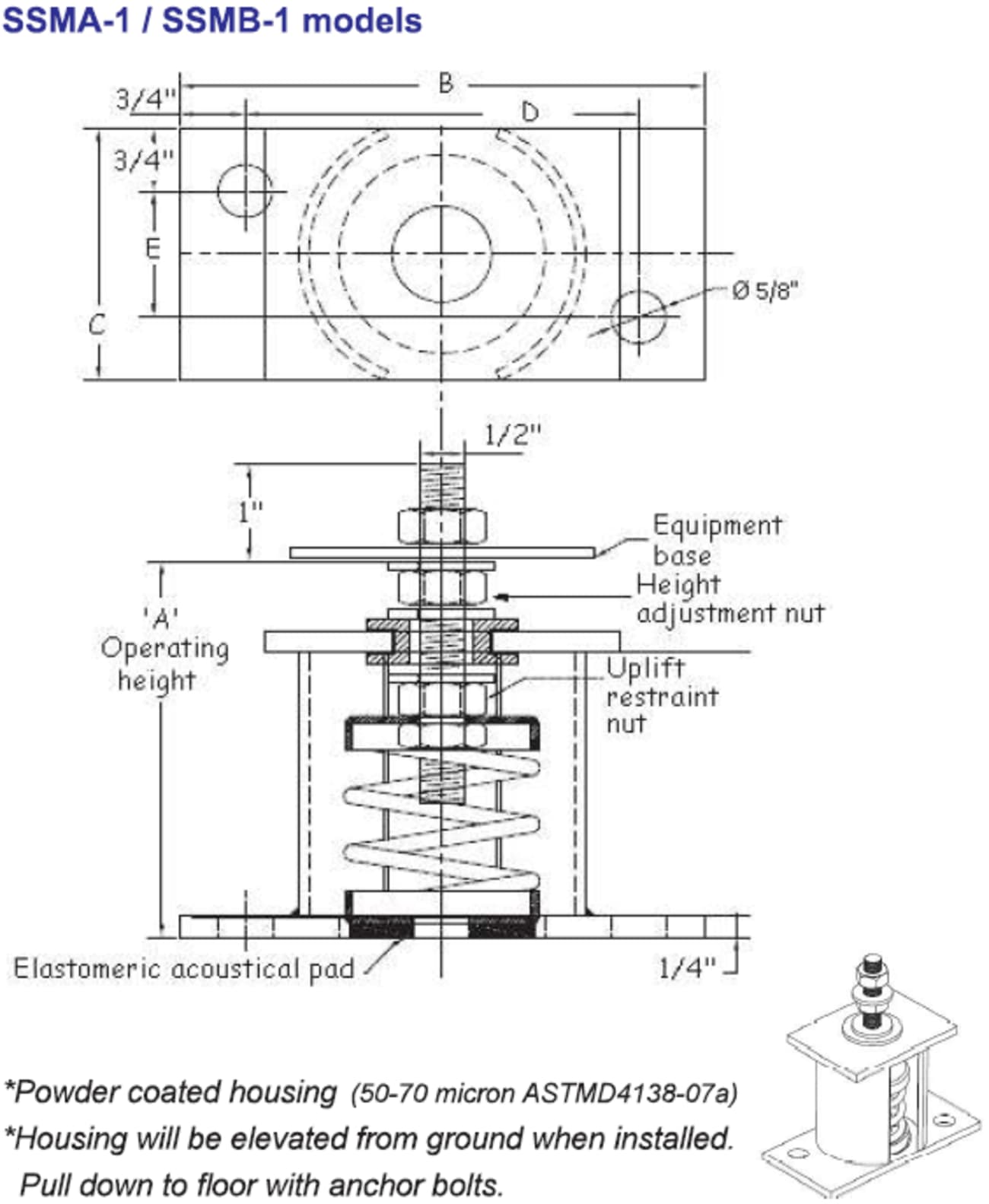

Dimension(Inches):
- A: 7-3/8
- B: 7
- C: 4
- D: 5-1/2
- E: 2-1/2
- G Rating: 3.03/4.24
Specifications
| Manufacturer: | Vimco-USA |
| Model: | SSMB/SSM-1-147 |
| Country of origin: | United States |
| Load Range (lbs) | 668 to 1190 |
| Deflection | 2" |
| Features | Welded Steel Construction, Built-In Leveling Device |
