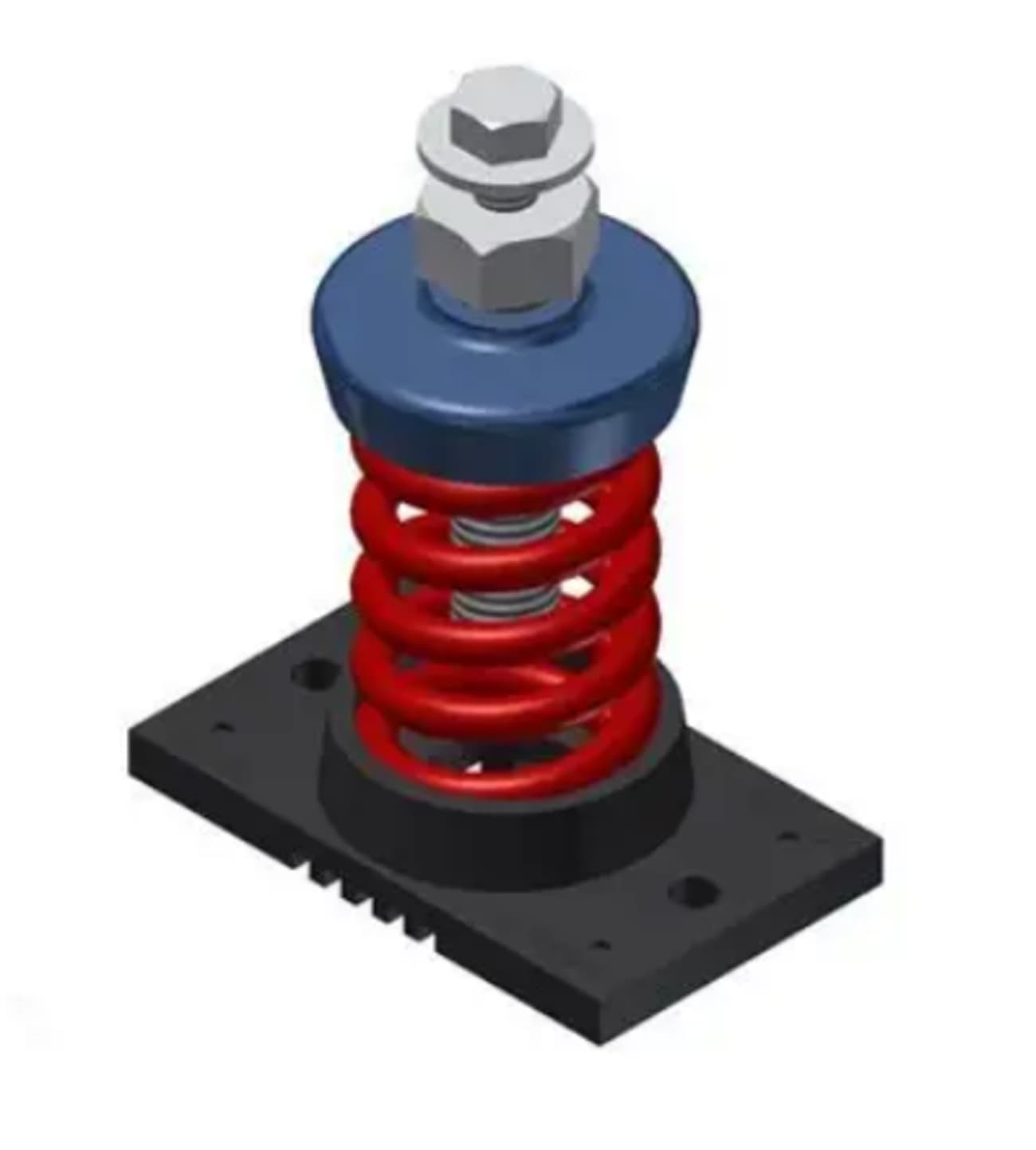

Seismic Restrained Spring Vibration Mount SSMA-1-127
Supplied by:
Meaptashi
Features and Application Information:
- Large diameter laterally stable springs
- Mounting holes furnished as standard
- All isolators certified to withstand minimum 1.39 G force
- Suitable for most seismic zone IV applications
- Spring elements color-coded for easy field verification

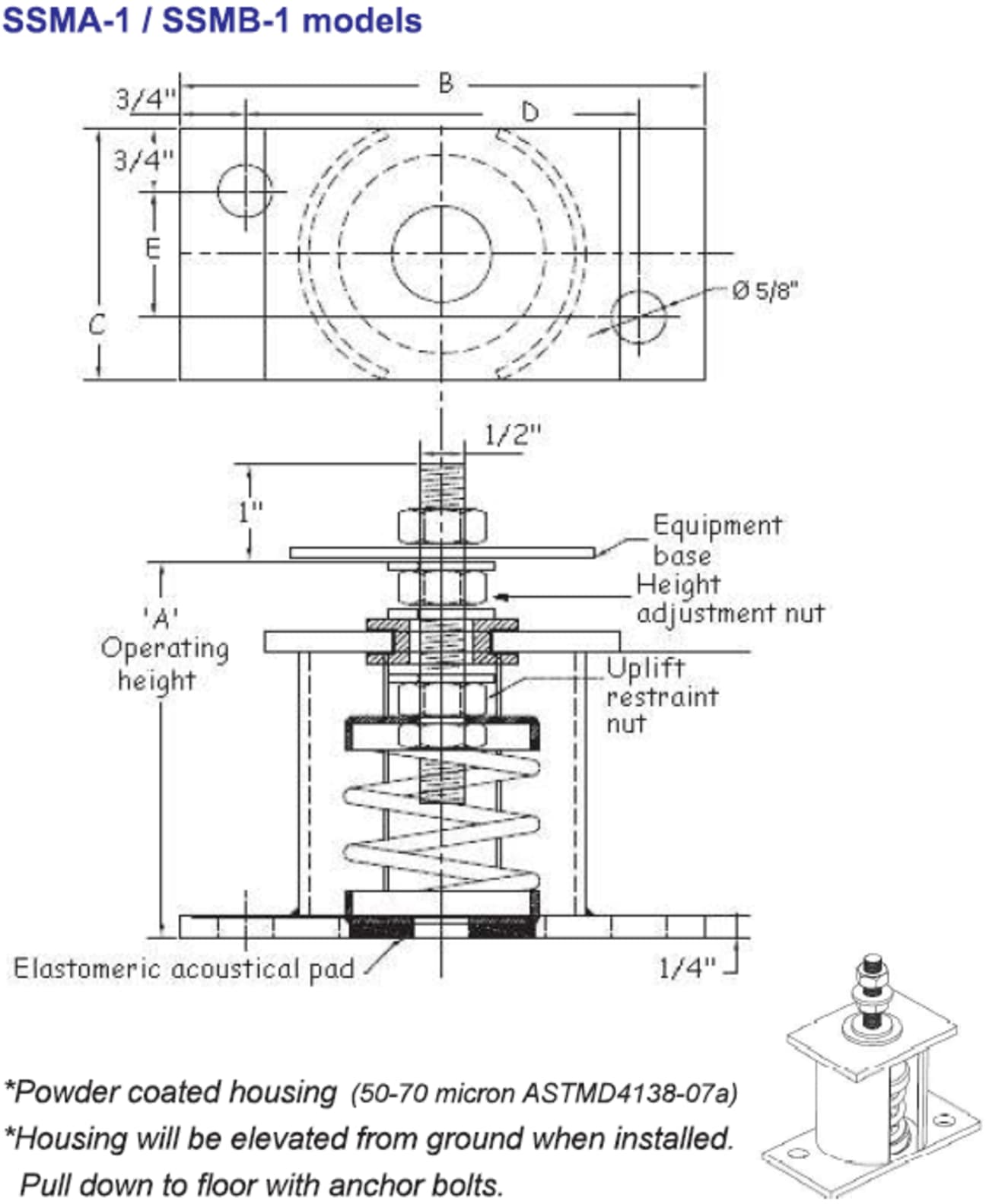

Dimension(Inches):
- A: 4-5/8
- B: 6
- C: 3
- D: 4-1/2
- E: 1-1/2
- G Rating: 2.32
Specifications
| Manufacturer: | Vimco-USA |
| Model: | SSMA-1-127 |
| Country of origin: | United States |
| Deflection | 1" |
| Load Range (lbs) | 371 to 700 |
| Features | Welded Steel Construction, Built-In Leveling Device |
