Rubber in Shear Hangers APH-A-1
Supplied by:
Meaptashi
Additional Information:
- Element incorporates projected collar to prevent metal to metal contact between rod and bracket.
- Elements color-coded for easy field verification
- Color: Green

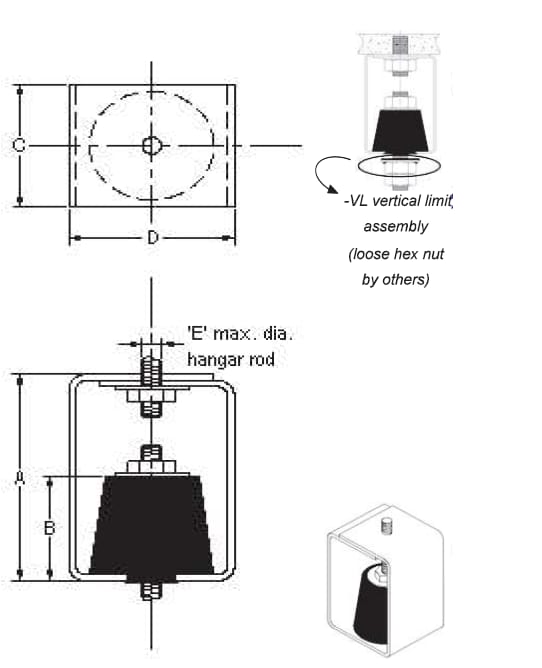

Specification:
- A: 2.41"
- B: 1.29"
- C: 1.65"
- D: 1.77"
- E: 3/8"
Specifications
| Manufacturer: | Vimco-USA |
| Model: | APH-A-1 |
| Country of origin: | United States |
| Features | Powder Coated Steel Bracket, Embedded Steel Plates, Low Natural Frequency, High Deflection |
| Deflection | 0.5" |
| Load Range (lbs) | 1 to 95 |
