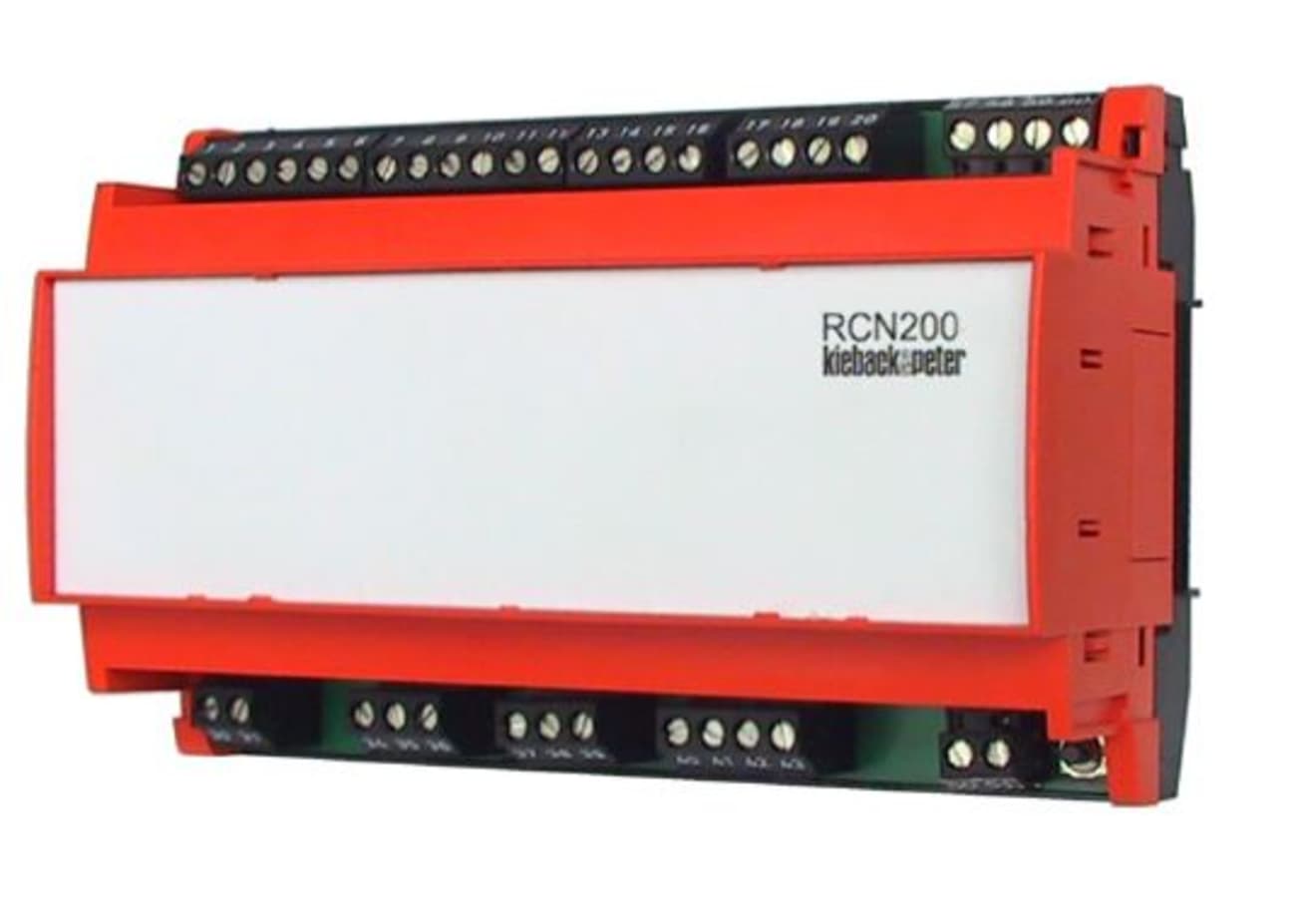

Room Controller RCN200-L
Supplied by:
National Fire Fighting Manufacturing Company
Application
The RCN200-L is a LON bus-capable room controller for energy-efficient temperature, air quality and humidity control. It can be used with LonMark-compliant standard applications or customer-specific solutions (can be freely configured) for up to 4 room control circuits with integrated weekly schedule programs. The RCN200-L is controlled using additionally connectable room control modules. Suitable for installation in electrical installation distributors or switch cabinets.
Item
Room controller for decentralized installation in false floors or ceilings. Can be used for energy-efficient temperature, air quality and humidity control with standard applications or freely configurable with up to 4 room control circuits
Technical Data
- Installation: Standard rail EN50022 in closed housing
- Dimensions WxHxD: 143.5 x 90 x 60mm
- Power Consumption: 3.5W-5W (depending on the output circuit)
Standards LonMark function profiles:
- Space Comfort Controller #8500
- Real Time Based Scheduler #3301

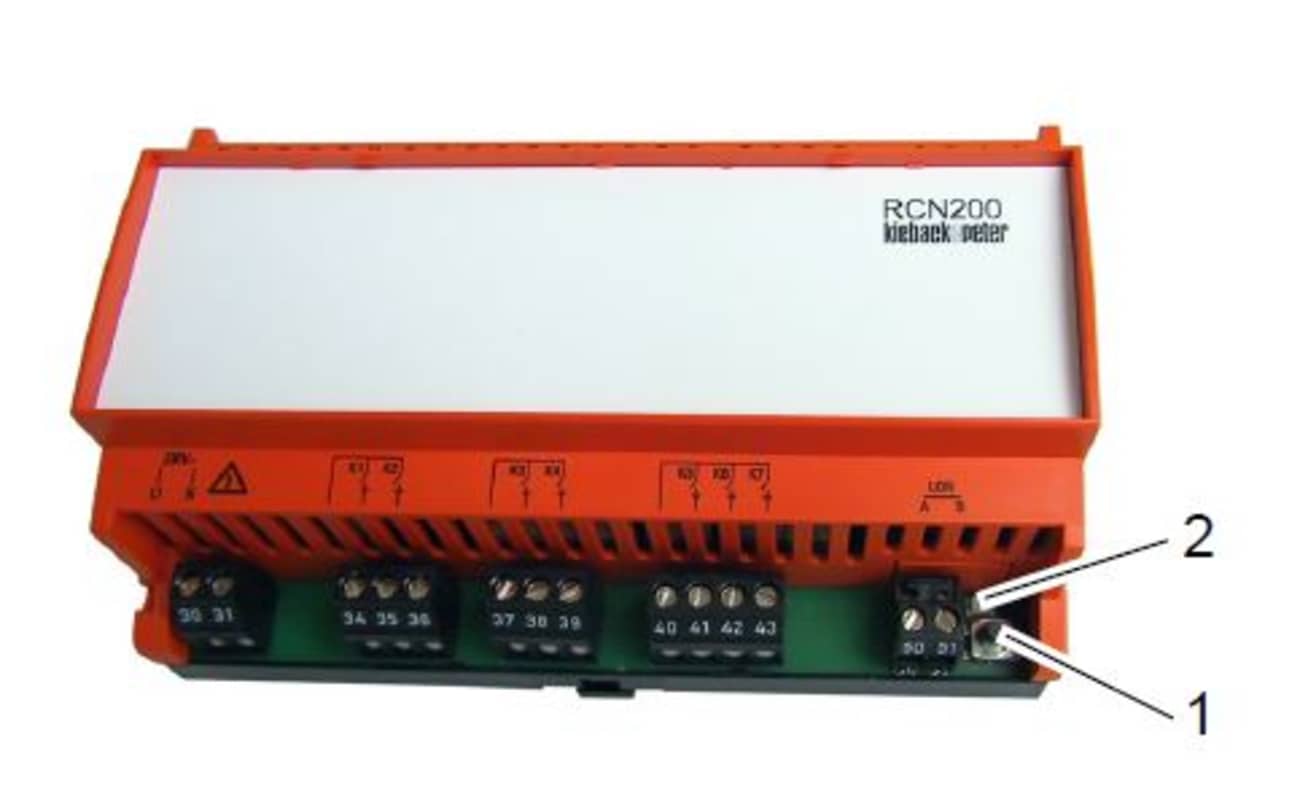

LED status:
- Green LED: Operating voltage
- Red LED ON: When the service PIN is pressed
- Red LED Flashing: Not commissioned
- Red LED OFF: Commissioned
Specifications
| Manufacturer: | Kieback & Peter |
| Model: | RCN200-L |
| Country of origin: | Germany |
| Ambient Temperature | 0 °C to 50 °C |
| Weight | 0.29 kg |
| Housing Material | Plastic |
| IP | 20 |
| Display | LED |
| Install Type | Wall-mounted |
| Nominal Voltage | AC 230V |
| Ambient Humidity | 20 to 90% r.h. |
