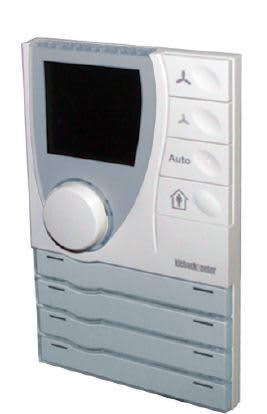

Room Control Module RBW31x-x-L

Room Control Module RBW30x-L is a bus-capable room control module with an LCD display. Different variants with a graded range of functions are available: Display and set room temperature, display time and date, weekly schedule, fan control, presence button. Models with two, four or eight additional keys are also available, which can each be assigned individually to different functions (e.g. light or blind control). RBW30x-L, RBW31x-x-L can be used as a room control module on a network. The LON Talk protocol is used for communication. A plug-in is used for configuration. This plug-in is a network management tool based on LNS3

Technical Data

• Nominal voltage - RBW31x-x-L 1.5 VA / 0.65 W
• Power consumption -RBW31x-x-L 0.5 W without backlighting,0.65 W with backlighting
• Measured value Room temperature of spaces in homes or commercial premises
• Measuring system Integrated digital room sensor
• Display and controls - Backlit graphical display: Feedback, presence, fan status, heating cooling, window contact, weekly schedule, time, date, project-specific messages, service level • Knob with confirmation key for setting the temperature, time and weekly schedule; setting/display of service data
• Installation: Screw mounting on a standard flush-mounted box
• Dimensions: RBW31x-x-L 90 x 145 x 16; flush-mounted depth = 9.5 •
