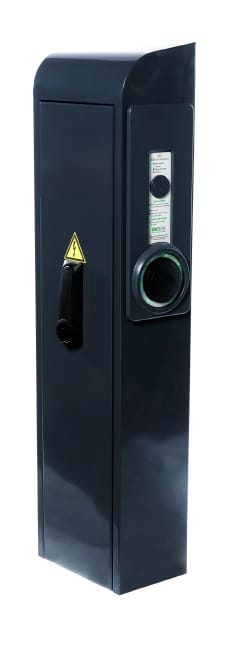

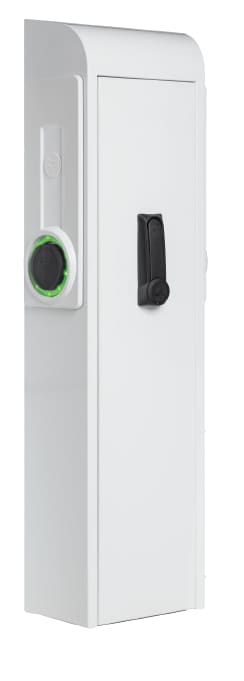

Public Line EVBox
Public Line EVBox charging stations are compatible with any grid network and ensure an energy efficient operation at all times. It's the strongest station for every city. Public Line is compatible with all grid networks and is available with double connectors. Its iconic LED-ring provides a clear status indication, making Public Line a friendly face for electric drivers at day and night. With adjustable charging rates and Smart Charging configurations, Public Line ensures an energy-efficient distribution of the available power over multiple charging stations and locations. Public Line EVBox charging stations are made of vandal proof, non-flammable and discoloration proof. Its robust and modular build makes the charger the strongest one around.
Specifications
| Manufacturer: | Cubic Art Technologies (CATEC) |
| Country of origin: | Netherlands |
| Mounting | On Foundation |
| Standard Colors | RAL 7024 (graphite gray) |
| Weight | 30 kg |
| Charging Capacity per Connector | 11 kW, 22 kW |
| Compliance | IEC 61851-1 (2010), EC 61851-22 (2002) |
| Housing | Stainless Steel |
| Enclosure Ratings | IP54, IK10 |
| Certifications | EN/IEC 61000-3 2 (2014), EN/IEC 61000-3-3 (2013), EN/IEC 61000-6-2 (2016), EN/IEC 61000-6-3 (2007) + A1 (2011), EN/IEC 60335-1 (2012) +A13 (2017), EN/IEC 60364-4-41 (2017), EN/IEC 60529-1 (1989) +A1 (1999) + A2 (2013), EN/IEC 60950-1 (2005) + A1 (2009) + A2 (2013), EN/IEC 60950-22 (2017), EN/IEC 61851-1 (2017), EN/IEC 61851-22 (2002), EN/IEC 62196-1 (2014), EN/IEC 62196-2 (2017) |
| Dimensions (mm) | 350 x 1250 x 22 |
