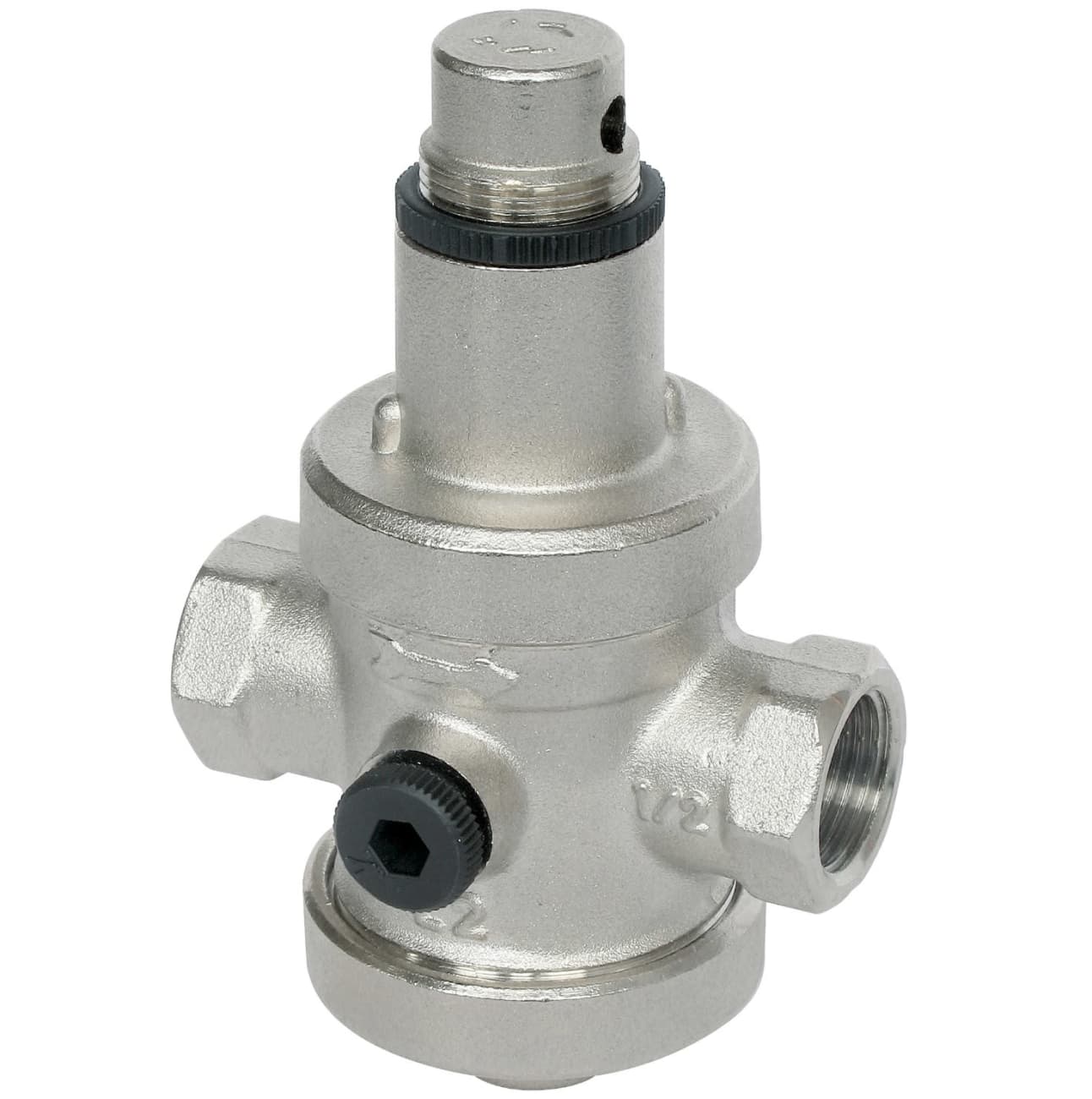

Pressure Reducing Valve PRV4PT

Supplied by: Pegler Yorkshire

Pressure Reducing Valve PRV4PT has two outlet gauge points.

  • Body: Nickel plated Brass
  • Spring: Stainless steel
  • Body Brass: CW617N,EN12165
  • Internal parts Brass: CW617N, EN12164
  • Seat: Stainless steel
  • Bar: Brass (CW617N, EN12164)
  • ‘O’ ring: NBR 70 SH
  • Plastic parts: Ultramild® A3K (BA
  • Flat gaskets: Fasit
  • Guarantee: 5 years

Specifications

DATA-SHEET SPEC-SHEET
Manufacturer: Pegler
Collection PRV
Model: PRV4PT
Country of origin: United Kingdom
Operating pressure 10 bar
Application Water
Dimensions DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Max inlet pressure 25 bar
Adjustable outlet 0.5:6 bat
Number of Outlet gauge points 2
Maximum inlet temp 80 deg C
Max Temperature + 120°C
Material Brass
Type Spring
