Pipe Supports U Bolt UB-05-x
Supplied by:
Meaptashi
Features and Application Information
- Complies with Federal Specification A-A-1192A (Type 24)
- Complies with ANSI/MSS SP-58-2009 (Type 24)
- Protection of insulation when used with pipe supports.
- Complies with ANSI/MSS SP-58-2009 (Type 40) and Federal Specification A-A-1192A (Type 41) - Model IPS only

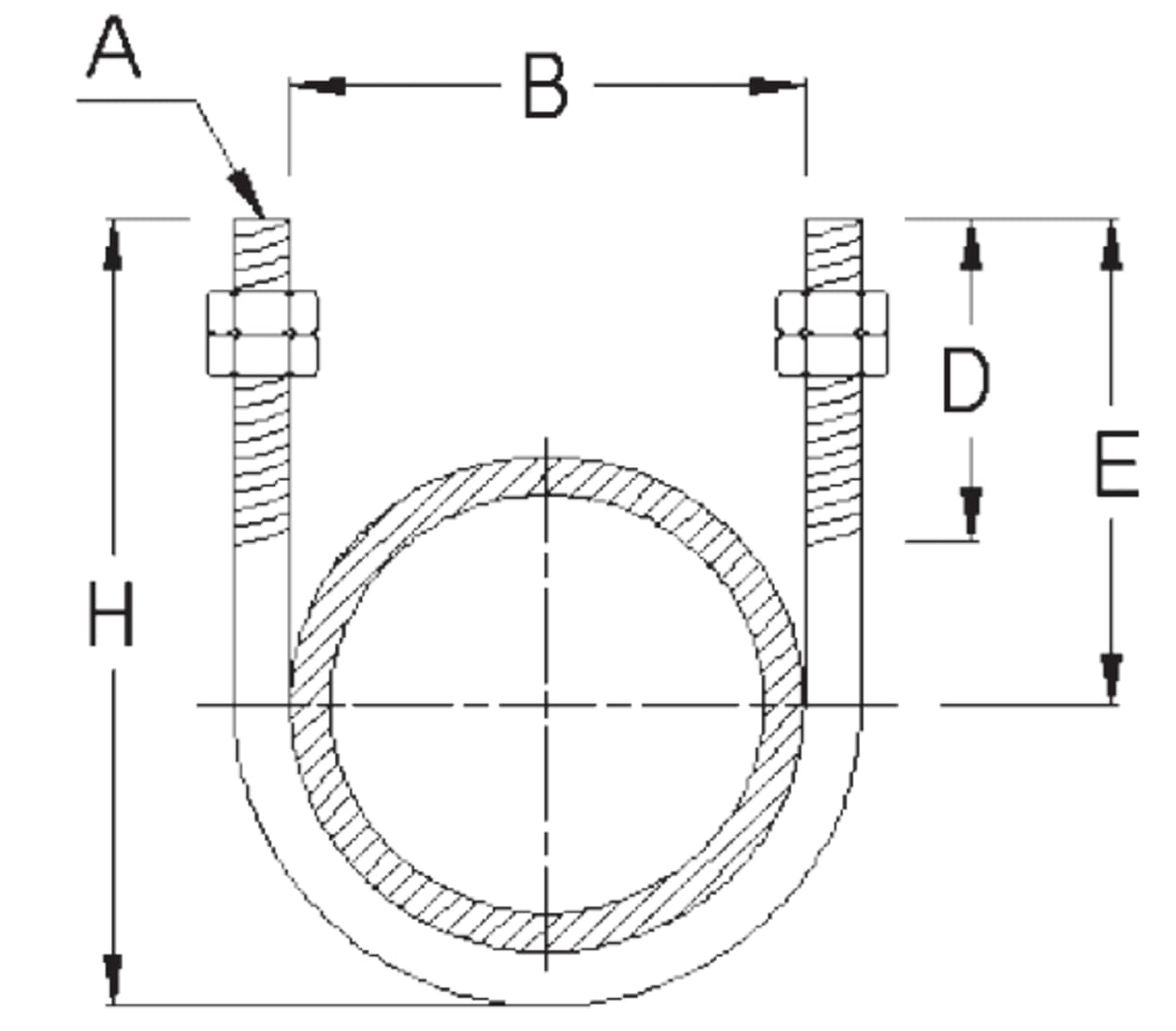

Part Dimension
- A- 1/4
- B- 15/16
- D- 2 3/8
- E- 2 3/4
- H- 3 7/16
Specifications
| Manufacturer: | Vimco-USA |
| Model: | UB-05-x |
| Country of origin: | United States |
| Materials | Low Carbon Steel |
| Features | Quick Installation |
| Pipe Size | 1/2 |
| Max Load (lbs) | 435 |
