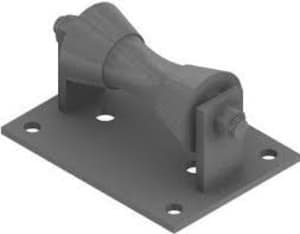

Pipe Supports Long Roller Chair LRC-50-x
Supplied by:
Meaptashi
Features and Application Information
- Support of pipes where longitudinal movement, due to expansion and contraction, may occur, and vertical adjustment is not required.
- Complies with Federal Specification A-A-1192A (Type 45)
- Chair can be welded directly to structure or bolted in place using mounting holes which are standard construction.
- Complies with ANSI/MSS SP-58-2009 (Type 44)
Part Dimension (inches)
- A - 3 3/8
- B - 2 1/2
- C - 3
- D - 8 7/16
- E - 1/2 x 1 1/2
Specifications
| Manufacturer: | Vimco-USA |
| Model: | LRC-50-x |
| Country of origin: | United States |
| Max Load (lbs) | 700 |
| Pipe Size | 5 |
