Digital Public Address & General Alarm Systems with Networked Options GEN II

PAGASYS GEN II is a robust public address and general alarm platform for use in a variety of environments. The New PAGASYS GEN II will take technology to the next level by offering a user-friendly, comprehensive, real-time system manager interface and a front-access design.

PAGASYS GEN II allows a user to manage system operation from the centralized system manager with extensive software field diagnostics for system hardware, ISMT speakers, and beacon monitoring; as well as other aspects of the system.

Details:

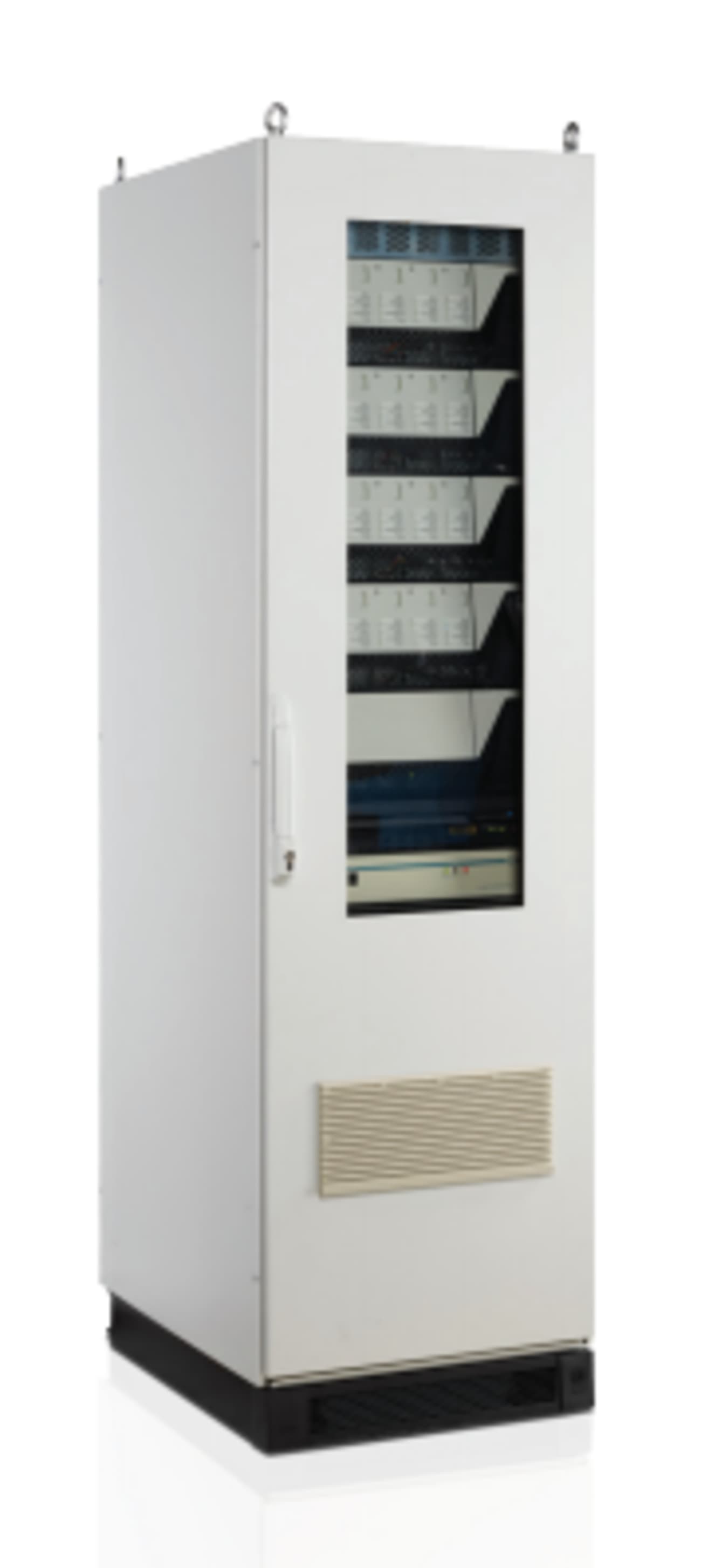

• Cabinet Model: Rittal TS8, Color RAL 7035
• Cabinet Plinth Size: 800mm x 600mm x 100mm
• Wire Termination Access: Front Access
• Audio Voices (Simultaneous): 6
• Line Level Supported: 70V/100V

Features:

• A single controller can support up to 32 1200W amplifier chassis.
• Supports multi-voice audio, driving up to 6 voices concurrently to up to 128 zones.
• Up to 32 external audio inputs.
• Up to 128 recorded messages.
• Up to 128 peripheral devices.
• Supports up to 32 external access panels.

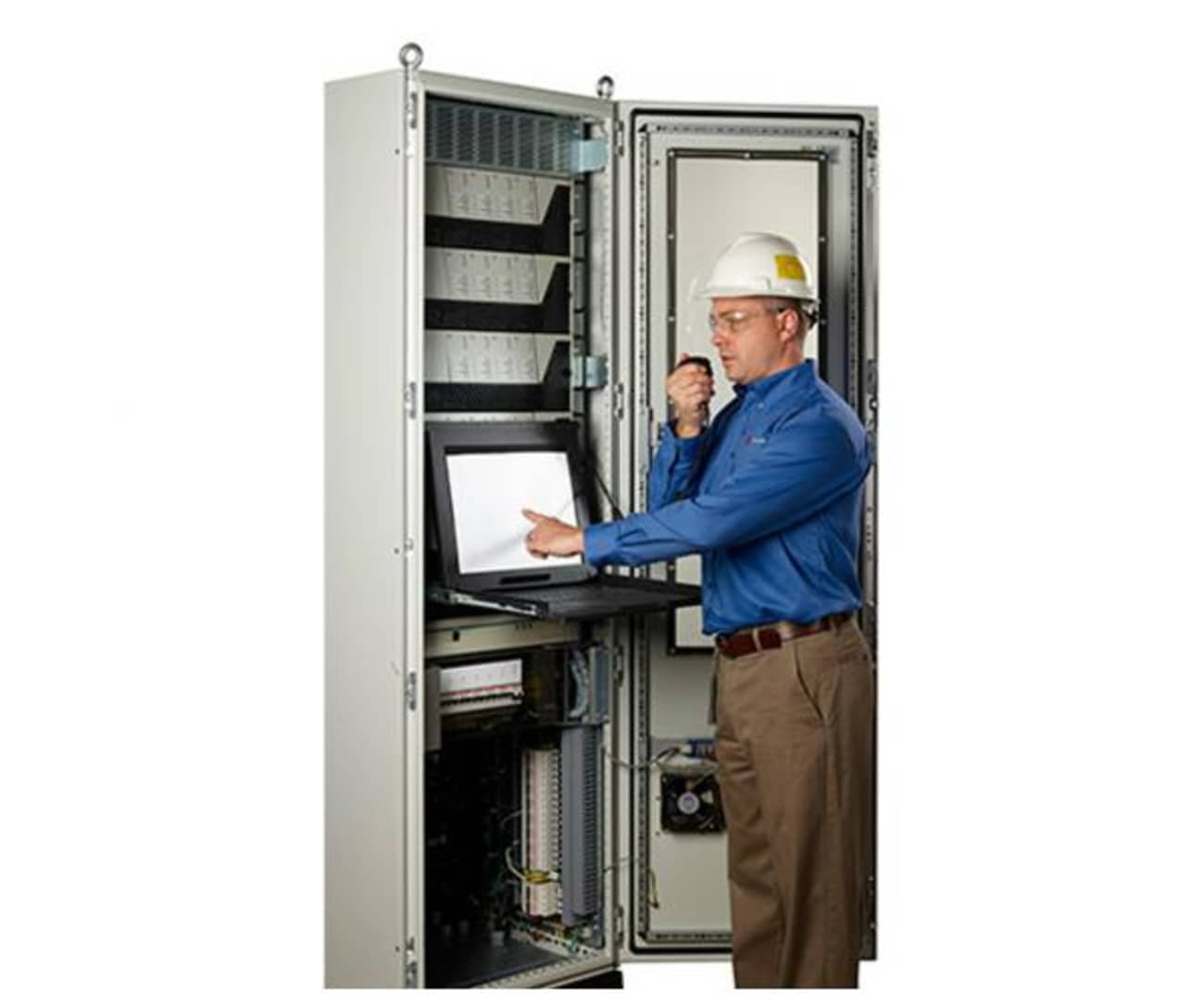

• Front rack access for ease of maintenance.
• Supports Intelligent Speaker Monitoring and Tapping (ISMT).
• System manager provides real-time system status, including event logs, system activity, broadcast status, impedance speaker monitoring, fan flow and amplifier thermal status.
