Neo Spring Hanger HNSF-HM-043
Supplied by:
Meaptashi
Additional Information:
- Spring/rubber elements color-coded for easy field verification.
- Ozone & water resistant elastomer elements with embedded steel plates and incorporating projected collar to prevent metal to metal contact between rod and bracket

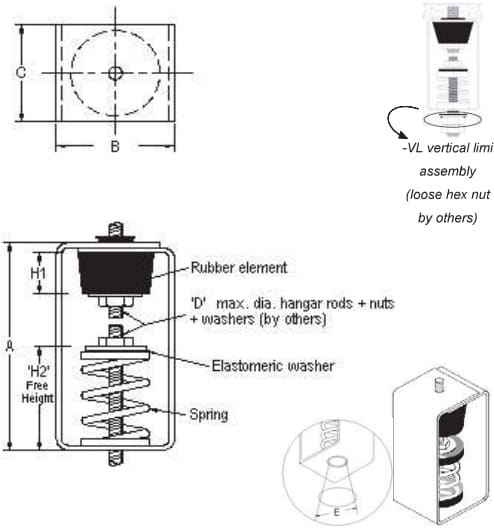

Specification:
- A: 4.85"
- B: 2.15"
- C: 1.5"
- D: 3/8"
- H1: 1"
- H2: 2.3"
- E: 23°
Specifications
| Manufacturer: | Vimco-USA |
| Model: | HNSF-HM-043 |
| Country of origin: | United States |
| Features | Powder Coated Steel Bracket, Load Distribution Steel Washer, Embedded Steel Plates, Low Natural Frequency |
| Deflection | 1" |
| Load Range (lbs) | 1 to 15 |
