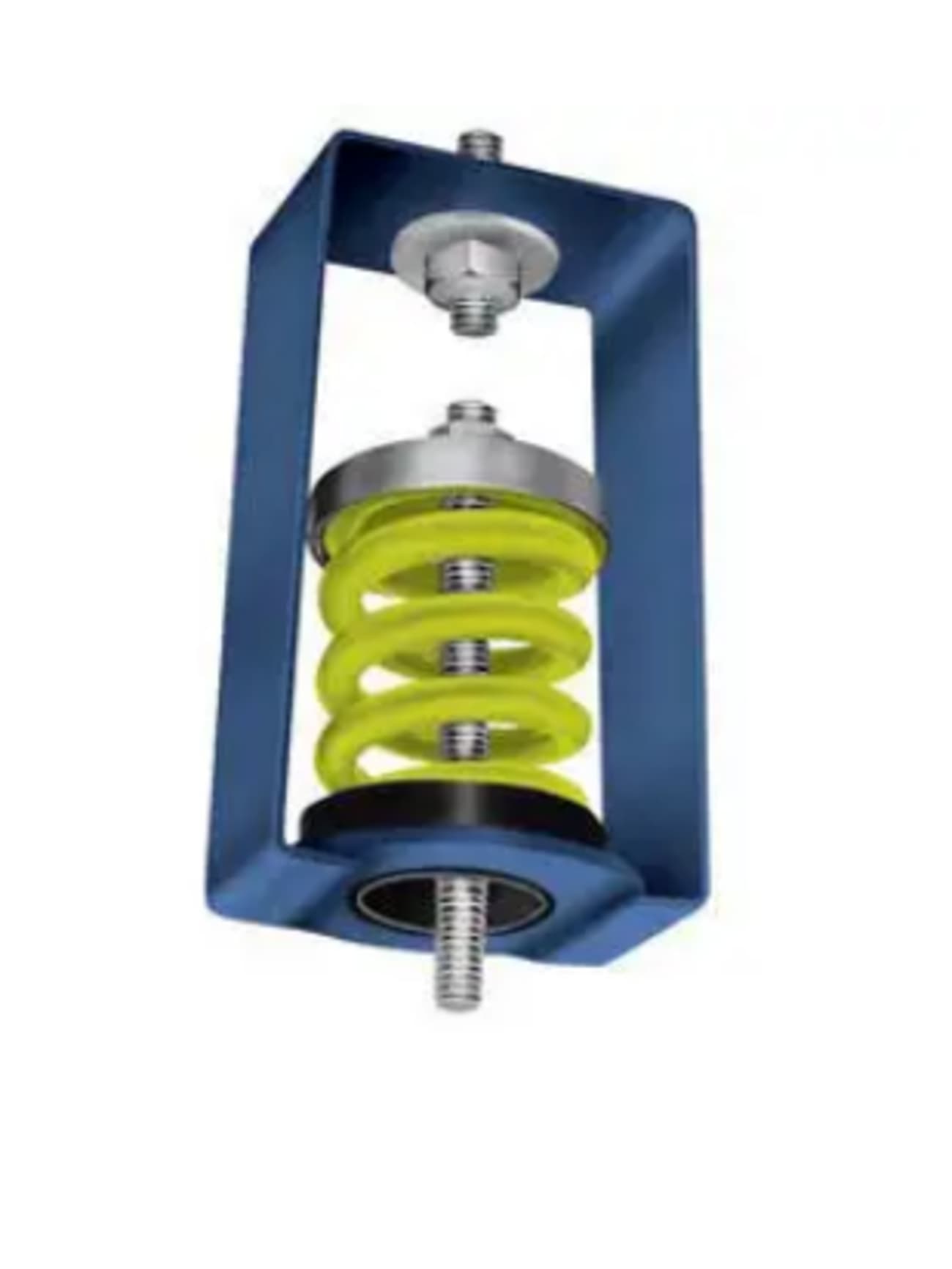

Neo Spring Hanger HNSF-HM-042
Supplied by
Meaptashi
Additional Information:
- Spring/rubber elements color-coded for easy field verification.
- Ozone & water resistant elastomer elements with embedded steel plates and incorporating projected collar to prevent metal to metal contact between rod and bracket

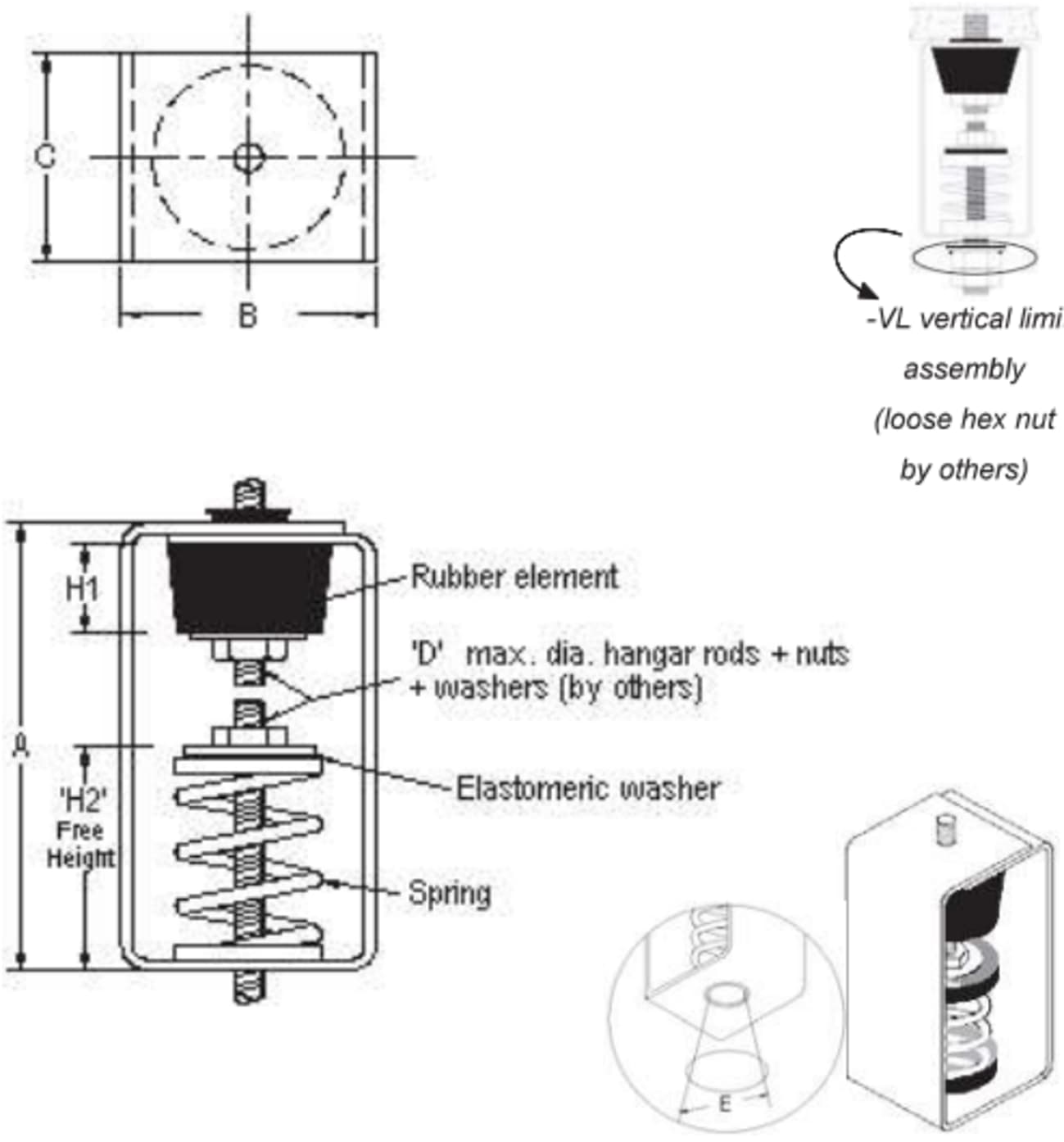

Specification:
- A: 4.85"
- B: 2.15"
- C: 1.5"
- D: 3/8"
- H1: 1"
- H2: 2.3"
- E: 23°
Specifications
- Manufacturer:
- Vimco-USA
- Model:
- HNSF-HM-042
- Country of origin:
- United States
- Features
- Powder Coated Steel Bracket, Load Distribution Steel Washer, Embedded Steel Plates, Low Natural Frequency
- Deflection
- 1"
- Load Range (lbs)
- 16 to 35
