Mode 10AX Plate Switches CMA012
Supplied by:
Scolmore International Limited

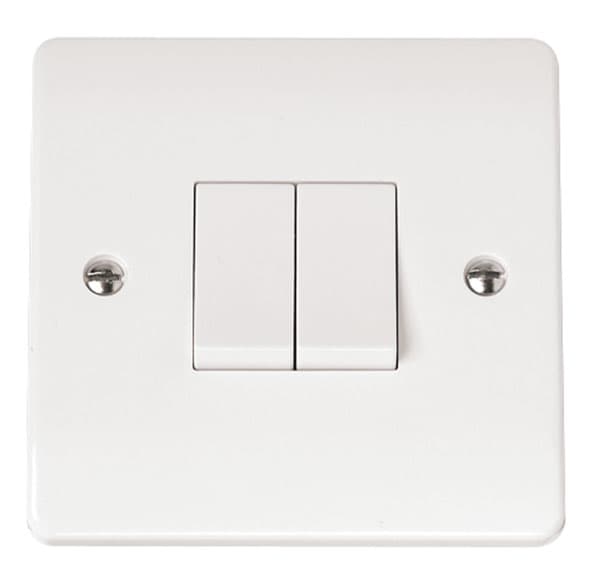

Mode 10AX Plate Switches CMA012 is a smooth modern line of the Mode accessory plate will fit easily into traditional and contemporary designs alike. Mode switches are developed largely as a modular range based on the large selection of switch modules available in the CLICK MINIGRID Module range. Simple, single screw fixing of modules offers the simplest possible means of installing and replacing modules. These switches are 2 gang 2 way plate switch.
Additional Features:
- Back Box Depth: 16mm - 47mm
- Modular: Yes
- Anti Microbial Certified: Yes
For additional details you can click on the link below:
scolmoredubai.com/products/mode/
Specifications
| Manufacturer: | Scolmore International Limited |
| Model: | CMA012 |
| Country of origin: | United Kingdom |
| Current Rating | 10AX |
| Material | Formed Press Brass, Steel & Yellow Passivated, Urea, Brass |
| Operational Temperature | -5 to +40 C |
| Back Box Depth | 16mm - 47mm |
| IP Rating | 20 |
| Cable Size | 4 x 1.5mm², 2 x 2.5mm² |
| Standards | Modified ISO 22196, BS EN 60669-1:1999 + A1:2002 + A2:2008 |
| Warranty | 20yrs |
| Terminal Size | 3.5mm |
| Torque Value | 0.4Nm |
