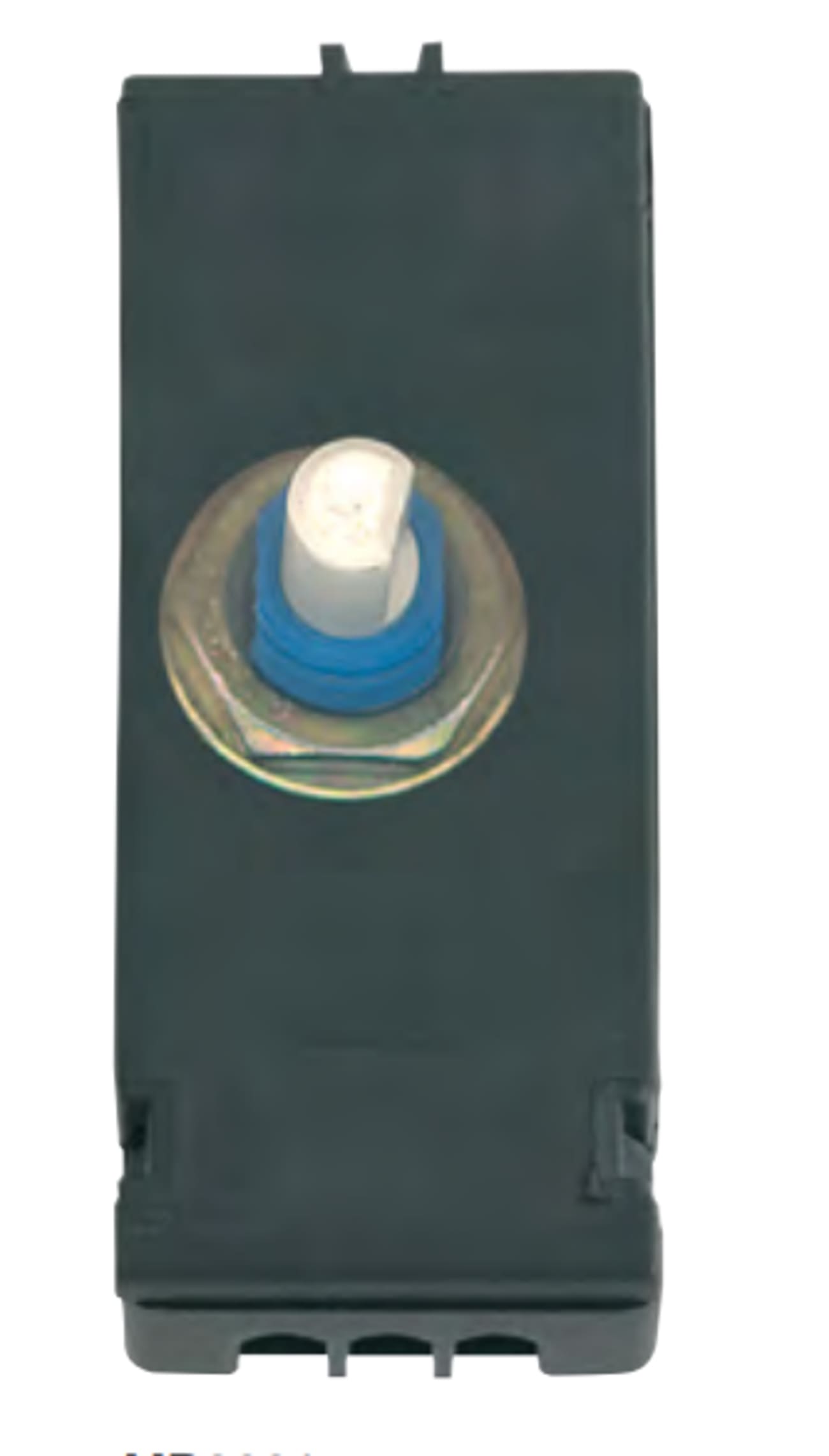

Minigrid Interchangeable Dimmer 2 Way Push On/Off Switch Module MD9042
Supplied by:
Scolmore International Limited
The Minigrid Interchangeable Dimmer 2 Way Push On/Off Switch Module MD9042 are all easily and quickly exchanged or mounted onto unfurnished plates by means of a simple single screw fixing. MD9042 has a 400W/Va 2 way resistive/inductive dimmer module.
For additional details you can click on the link below:
scolmoredubai.com/products/minigrid/
Specifications
| Manufacturer: | Scolmore International Limited |
| Model: | MD9042 |
| Country of origin: | United Kingdom |
| Operational Temperature | -5 to +40 C |
| IP Rating | 20 |
| Material | Steel & Yellow Passivated, Brass, Nylon |
| Terminal Size | 3.5mm |
| Cable Size | 2 x 1.5mm² |
| Standards | BS EN 60669-1:1999 + A1:2002 +A2:2008, EN 61000 : 1995 + A1, EN 55015 : 2000 + A1 |
| Back Box Depth | 25mm - 47mm |
| Current Rating | 6A |
| Warranty | 1 Yr |
