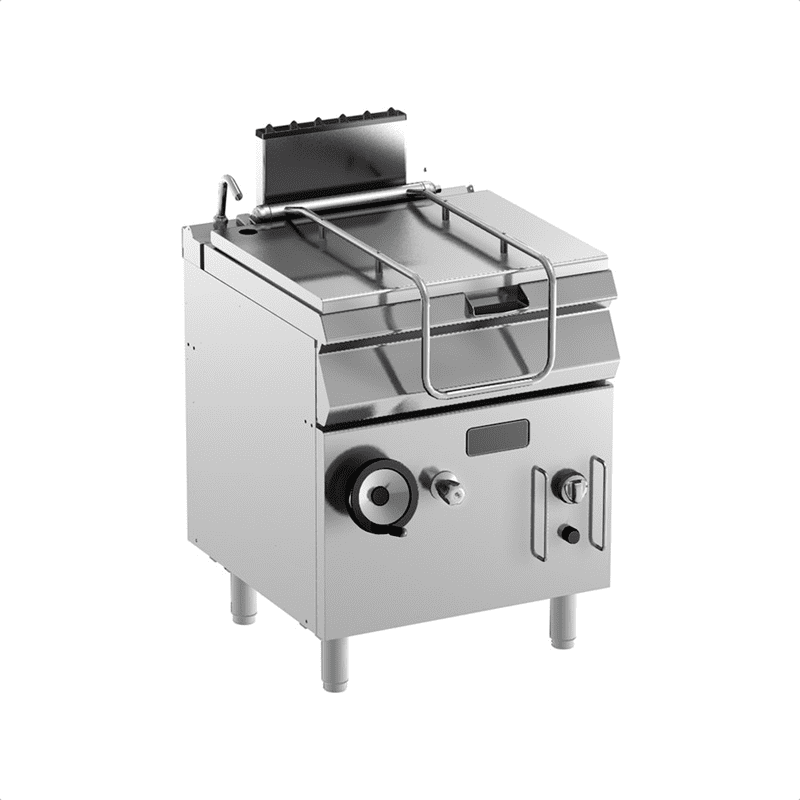

Manuel Gas Tilting Bratt Pan

18-10 stainless steel free-standing structure. Pan with stainless steel AISI 430 base and18-10 stainless steel walls. Heated by thermostat controlled burner with pilot light and thermocouple.

Features:

• Cooking well with rounded corners, base and walls in 18-10 stainless steel thickness 20/10 mm, with polished interior; radiant well base in AISI 430 stainless steel thickness 10 mm
• Well dimensions (mm) 630 x 460 x 183 h. Available cooking surface 23.5 dm2. Well capacity at drain level: 54 litres. Well capacity at recommended level: 40 litres.
• Specific output at well base for cooking: 510 W/dm2.
• Well with outlet spout specially shaped to enable product drainage without overflowing.
• Lid mounted on spring-loaded hinges.
• Heating with multiple self-stabilising flame burner. Heating output controlled by power modulator linked to double threshold thermal sensor fitted in well base.
• Manual well tilting with handwheel operating through a lead screw mounted on front of appliance.
• Sealed exhaust flue with enamelled guard at back of appliance top.
• Heat-resistant knobs with screen printed markings and reference index printed on control console.
• Height adjustable floor-mounted feet in 18-10 stainless steel - floor clearance 180 mm, with non-scratch sole in insulating plastic material.
• The product conforms to EC 1935/2004 Regulation and 21/03/1973 Rulemaking (Materials and Objects that are destined to come into Contact with Aliments).
