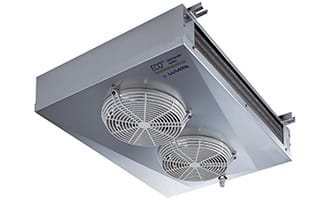

Luvata MIC Unit Cooler

The MIC range dual discharge unit coolers are suitable for application in reach-in/walk-in cabinets, display cases and small rectangular based cold rooms. The entire range is equipped with high efficiency coils made from special profile aluminium fins and copper tube, suitable for new generation refrigerants; with 4,5/9 mm dual fin spacing for the entire range (for room temperatures ≥ –25 °C).

The standard fan motors employed have the following features:

• diameter 230 mm, single-phase 230V/1/50-60Hz and fibreglass charged polyamide fan guard;
• IP 42 protection grade;
• class B insulation;
• internal thermal contact protection;
• operating temperature: maximum+40 °C.

The versions with standard electric defrost (ED) are equipped with stainless steel heaters with vulcanised terminals preset for 230V/1/50-60Hz connection.
