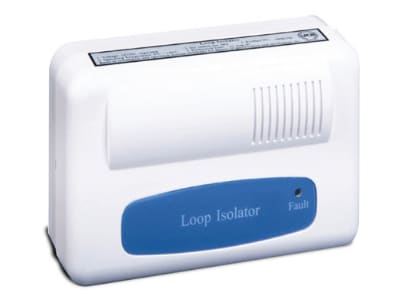

Loop Isolator Module AI-520

Loop isolator module is loop type fire alarm system, it often occurs that partial short circuit of loop affects the whole system. This loop isolator can isolate the shorted circuit from the whole system to ensure normal operation of other parts and locate the isolated part. The isolator is applicable to all kinds of loop fire alarm systems, suitable for Class A and Class B.

Features:

Polarity-sensitive external connections. Input and output can be used inversely without direction.
Delayed power-up to output end devices, avoids strong transient current when the load is heavy.
Plug-in structure.

Specification:

Operating Voltage: 24VDC (16VDC~28VDC)
Standby Current: ≤3mA
Action Current: ≤15mA
Capacity: Maximum 32 devices every two isolators
Indicator: Yellow, flashes when polling, illuminates in action
Operating Temperature: 0°C～+49°C
Relative Humidity: ≤95%, non condensing
Material and Color of Enclosure: ABS, White (RAL 9016)
Dimension (L×W×H): 120mm×80mm×39mm (with base)
