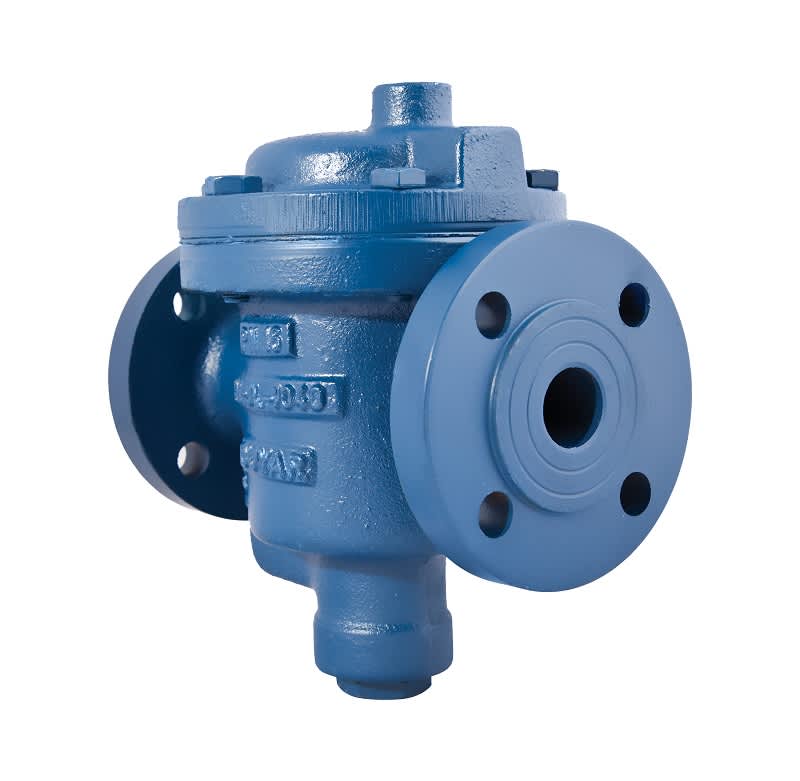

Inverted Bucket Steam Trap T-1610
Supplied by:
Duyar Valve
Inverted Bucket Steam Trap T-1610 is flanged valves
Working Temperature: -10 ... +120 °C (16 Bar), 200 °C (13 Bar), 250 °C (11 Bar), 300 °C (10 Bar)
Additional Features
- Design: TS EN ISO 4126
- Flange Dimensions: TS EN 1092-2 (PN 16)
- Thread Standard: EN ISO 228-1
- Tests: TS EN 12266-1
Specifications
| Manufacturer: | Duyar Valve |
| Collection | Steam Trap |
| Model: | T-1610 |
| Country of origin: | Turkey |
| Max Temperature | 200 °C (13 Bar), 250 °C (11 Bar), 300 °C (10 Bar), 120 °C (16 Bar) |
| Nominal Pressure | 16 Bar |
| Application | Saturated Steam Applications |
| Nominal Diameter | DN15, DN20, DN25, DN32, DN40, DN50 |
| Type: | PN16 |
| Certificate | GOST |
| Material | Klingerit, Cast Iron, Steel, Stainless Steel |
| Pressure - Shell (Bar) | 16 |
| Pressure - Seat (Bar) | 16 |
