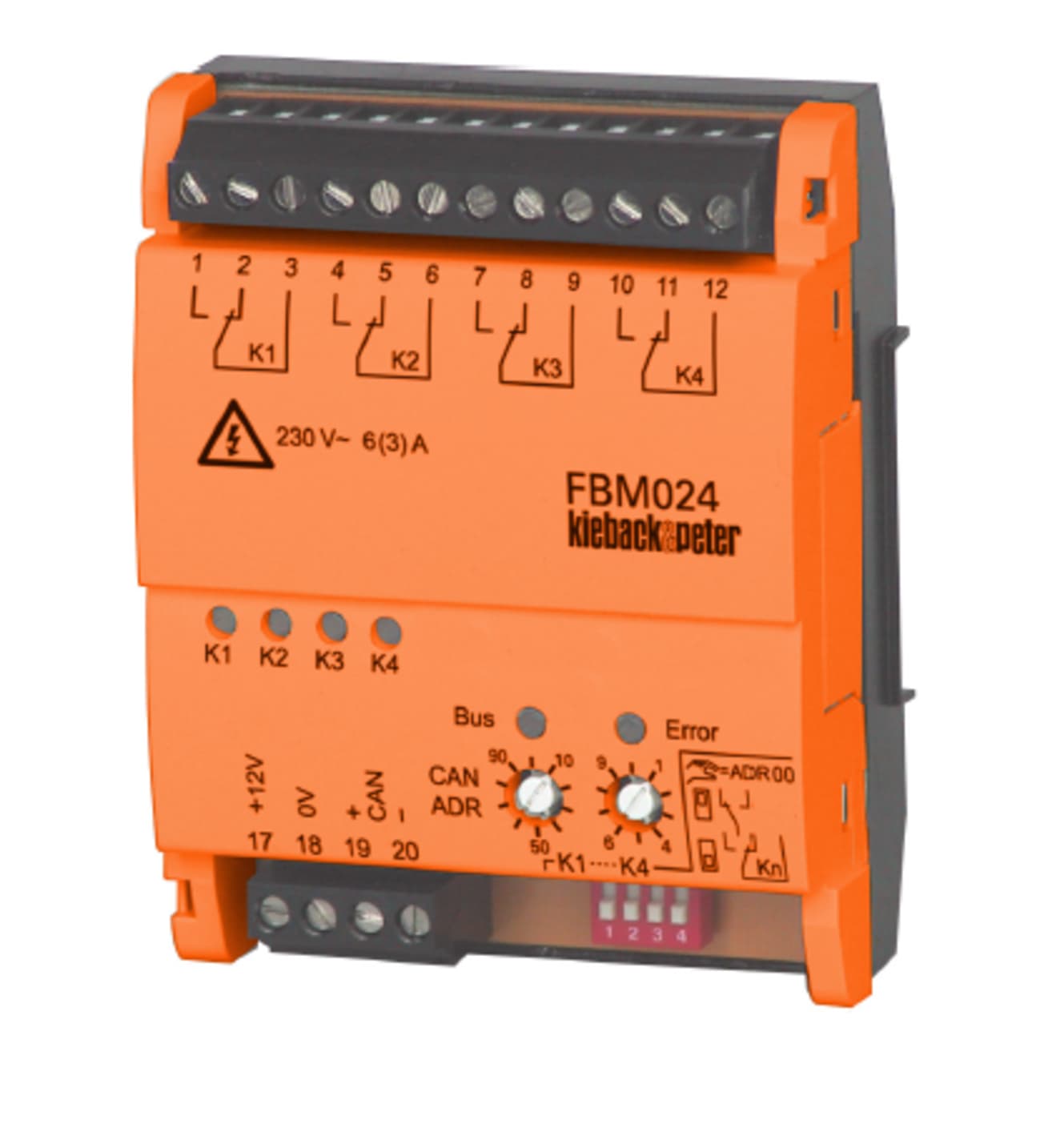

Fieldbus Output Module FBM024
Supplied by
National Fire Fighting Manufacturing Company
Product Description
FBM024 fieldbus output modules comes with 4 binary outputs are used on-site in operational plants for switching remote devices in the DDC3000 and DDC4000 automation and control systems.
Application
- Outputs as voltage-free changeover switches. State monitoring via LEDs.
- Data is transferred between the controller and the output module via the fieldbus.
Technical Data
- Nominal voltage: DC 12 V ±20% / 80 mA; 1.0 VA.
- Fuse: 0.25 A, delayed-action
- Dimensions: WxHxD: 143,5x x 90 x 60 mm
Setting the Switch Cabinet Bus Address
1) Transparent cover
2) Address switch
3) Green “BUS” LED
4) Red “Error” LED
Specifications
- Manufacturer:
- Kieback & Peter
- Model:
- FBM024
- Country of origin:
- Germany
- Interfaces
- 20 kBd, CAN, fieldbus 2000 m
- Housing Material
- Plastic
- IP
- 20
- Weight
- 135 g
- Ambient Temperature
- 0–45 °C
- Rated Impulse Voltage
- 2500 V
