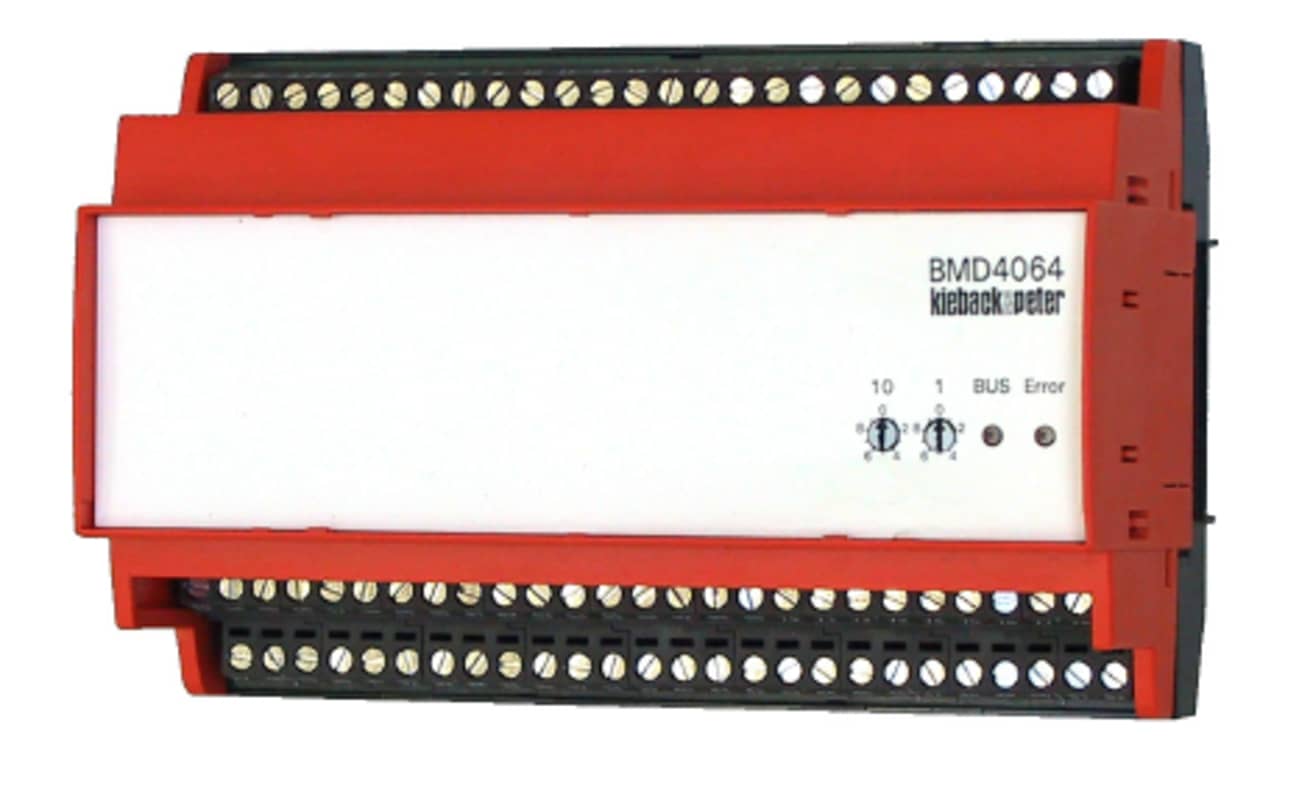

Input & Output Module BMD4064
Supplied by
National Fire Fighting Manufacturing Company
Product Description
Input and Output Module BMD4064 comes with 64 digital inputs or outputs receives System 4000 binary signals and activates binary control functions.
Application
- The function of the 64 inputs or outputs can be individually software configured and defined for each connection.
- The first 8 inputs can be used as pulse counter inputs up to 80 Hz.
Technical Data
- Nominal voltage: AC 24 V ± 10%, 50 Hz to 60 Hz, 90 mA, DC 24 V ± 10%, 130 mA for inputs and outputs.
- Fuse: 0.25 A, delayed-action
- Rated impulse voltage: 800 V
- Degree of protection: IP20
- Dimensions: WxHxD: 143,5x x 90 x 60 mm

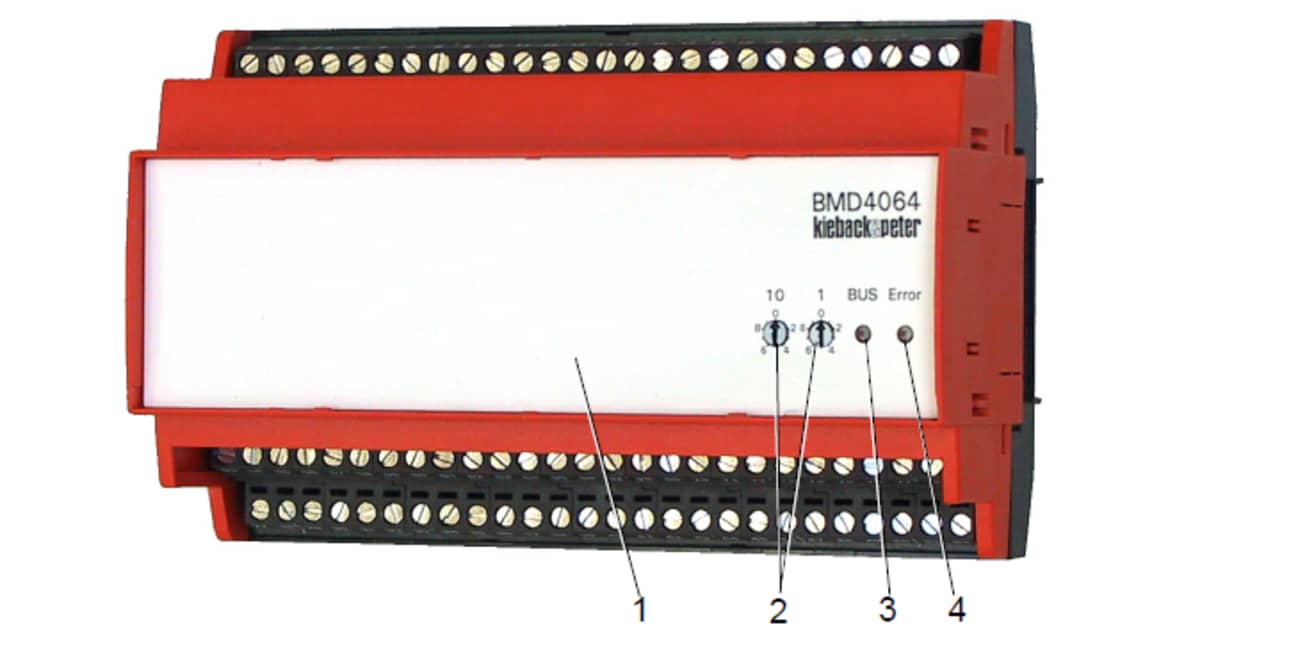

Setting the Switch Cabinet Bus Address
1) Transparent cover
2) Address switch
3) Green “BUS” LED
4) Red “Error” LED
Specifications
- Manufacturer:
- Kieback & Peter
- Model:
- BMD4064
- Country of origin:
- Germany
- Ambient Temperature
- 0 °C to 50 °C
- Housing Material
- Plastic
- Interfaces
- Switch cabinet bus
- Weight
- 312 g
- IP
- 20
- Rated Impulse Voltage
- 800 V
