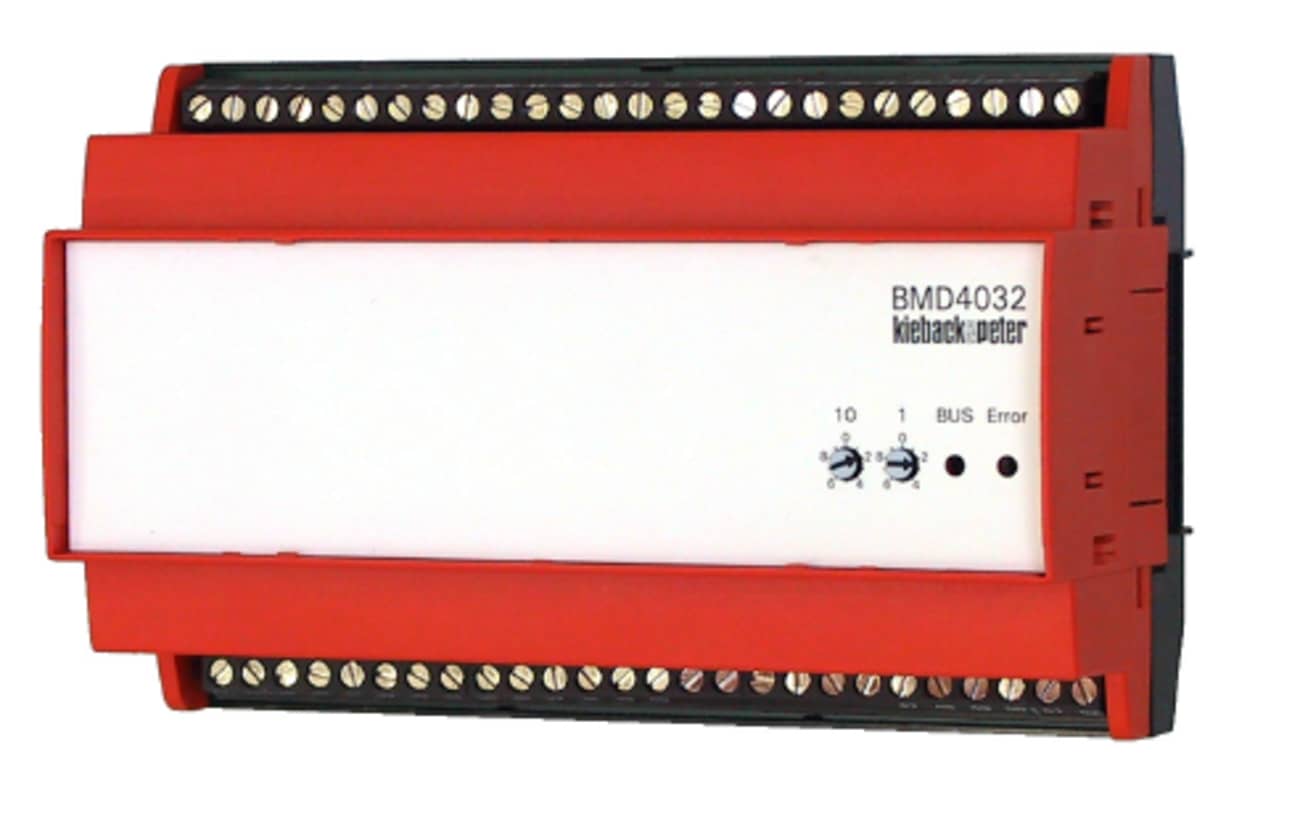

Input & Output Module BMD4032

Product Description

Input and Output Module BMD4032 comes with 32 digital inputs or outputs receives System 4000 binary signals and activates binary control functions.

Application

• The function of the 32 inputs or outputs can be individually software configured and defined for each connection.
• The first 8 inputs can be used as pulse counter inputs up to 80 Hz.

Technical Data

• Nominal voltage: AC 24 V ± 10%, 50 Hz to 60 Hz, 90 mA, DC 24 V ± 10%, 100 mA for inputs and outputs
• Fuse: 0.25 A, delayed-action
• Dimensions: WxHxD: 143.5 x 90 x 60 mm

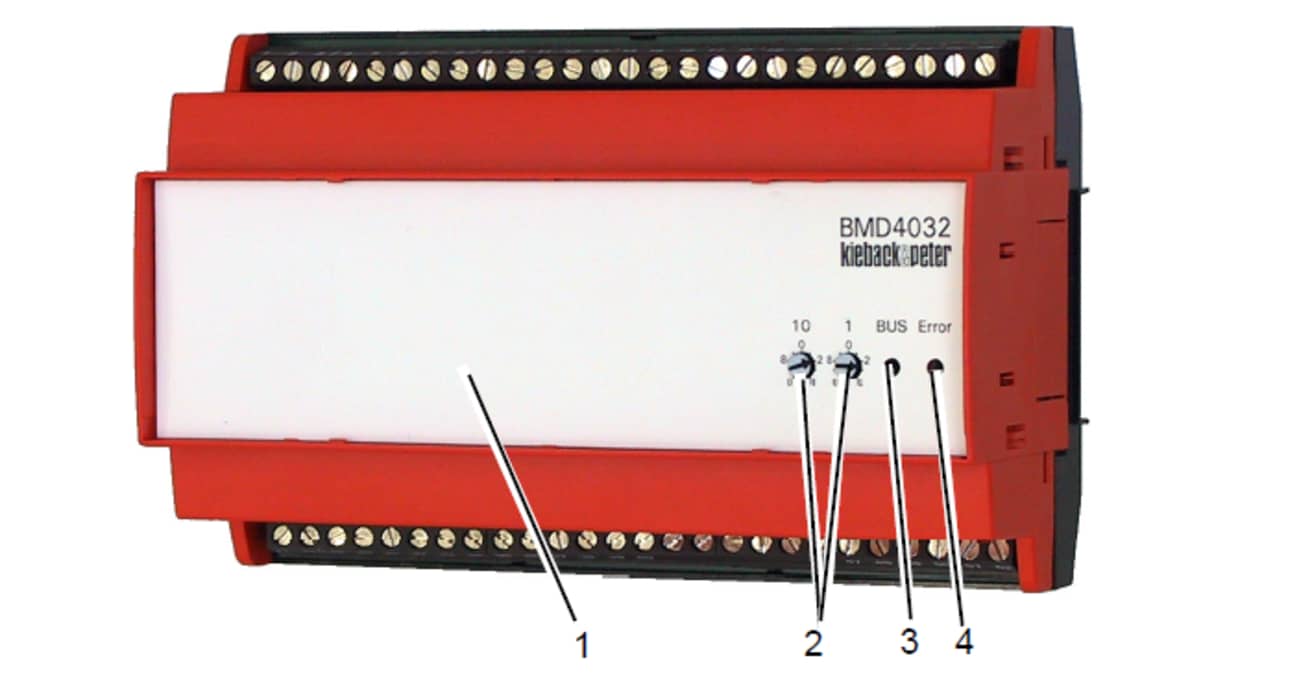

Setting the Switch Cabinet Bus Address

1) Transparent cover
2) Address switch
3) Green “BUS” LED
4) Red “Error” LED
