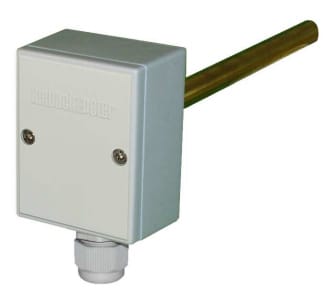

Immersion Temperature Sensors TVD1

Product Description

• TVD1 has an Immersion temperature sensor, 100 mm brass thermowell.

Application

• The TVD immersion temperature sensors are used to measure the temperature in the pipelines of heating, ventilation and air-conditioning systems.
• The immersion temperature sensors are used in conjunction with all loop controllers and control systems that have a sensor connection for the KP10 measuring element.

Technical Data

• Measured quantity Supply temperature
• Measuring tolerance: Typically ±0.2K.
• Measuring range: TVD 0 °C..+130 °C.
• Connection housing Light grey plastic housing, M16 x 1.5 cable entry.
• Measuring element KP10, 2.731 V at 0 °C, TC = 10 mV/K
