Housed Spring Mounts ZA/ZB/ZC7ZD-125
Supplied by:
Meaptashi
Additional Details
- Powder coated cast iron housings (70-110 micron ASTMD4138-07a)
- Internal elastomeric snubbers prevent metal to metal contact
- Built-in leveling device
- Adjust mounting so that upper housing clears lower housing by at least 1/4" but not more than 1/2"
- Spring elements color-coded for easy field verification

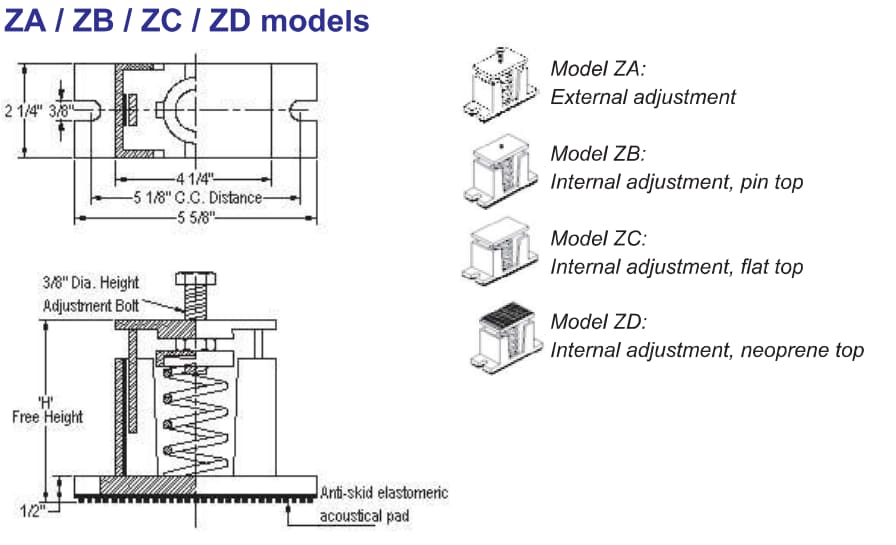

H
*ZA: 4"
*ZB: 4-1/4"
*ZC: 4-1/4"
*ZD: 4-1/2"
Specifications
| Manufacturer: | Vimco-USA |
| Model: | ZA/ZB/ZC7ZD-125 |
| Country of origin: | United States |
| Features | Anti-skid Elastomeric Acoustical Pad |
| Max Load (lbs) | 211 - 300 |
