Free Standing Spring Mounts BA/BD/BG/BK/BS-081
Supplied by:
Meaptashi
Additional Details
- Large diameter laterally stable springs
- Anti-skid elastomeric acoustical cup/pad
- Built-in leveling device (except BP/BG/BH series)
- Spring elements color-coded for easy field verification
H

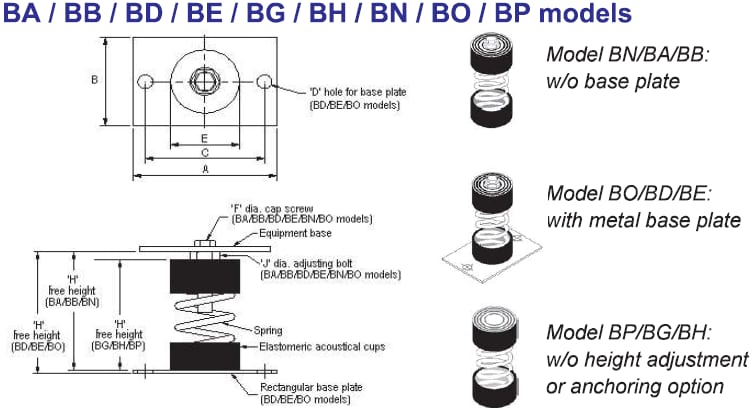

- BA: 5-3/4
- BD: 5-7/8
- BG: 5"
- BK: 5-1/4

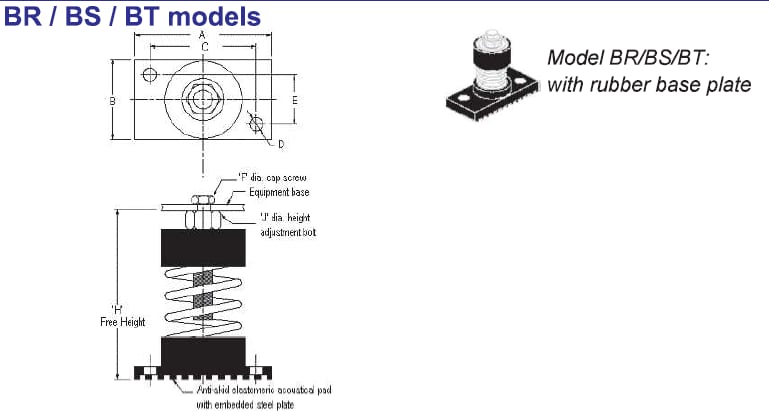

- BS: 5-3/4
Specifications
| Manufacturer: | Vimco-USA |
| Model: | BA/BD/BG/BK/BS-081 |
| Country of origin: | United States |
| Load Range (lbs) | 1 to 40 |
| Features | Anti-skid Elastomeric Acoustical Pad |
| Deflection | 2" |
