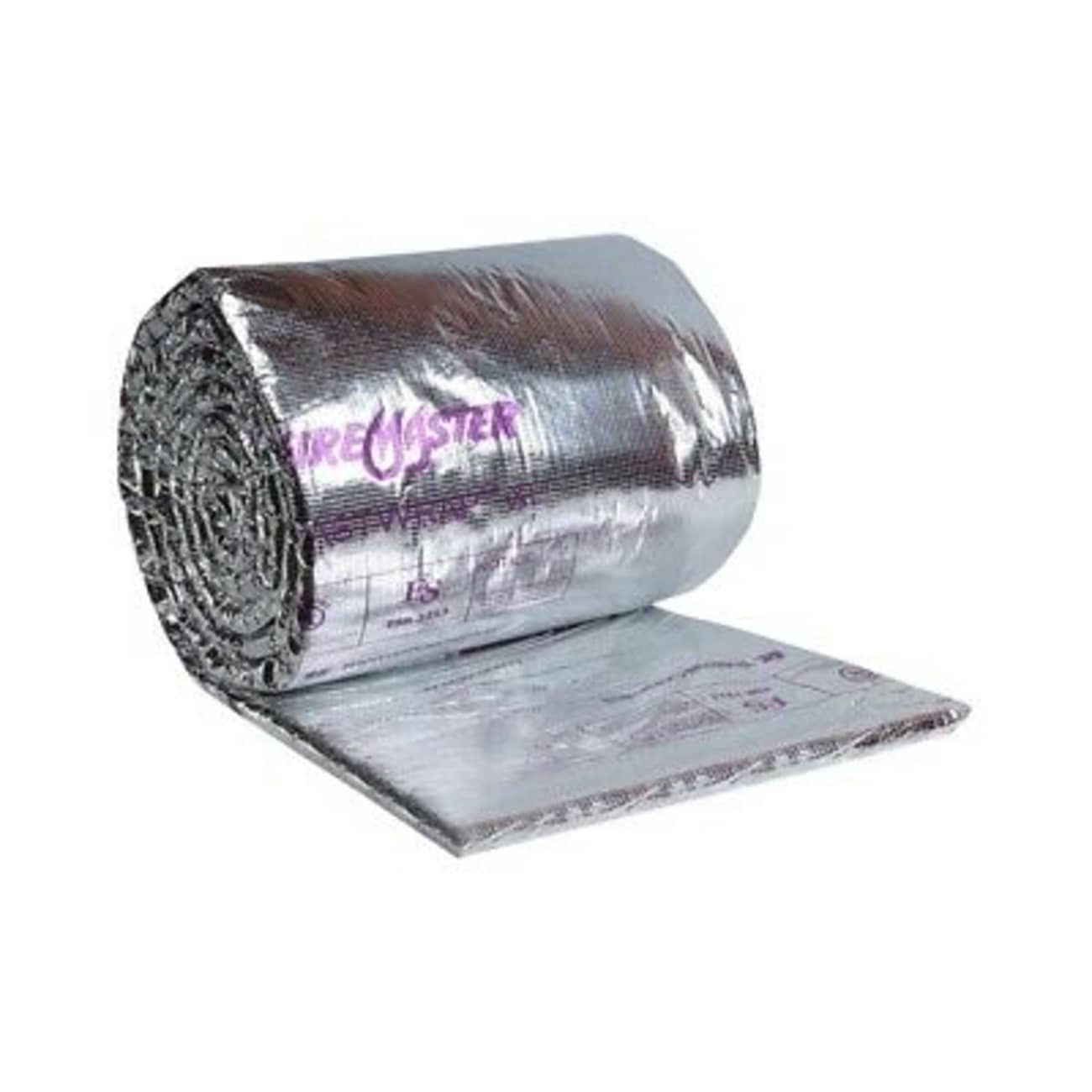

FireMaster Dryer Wrap System

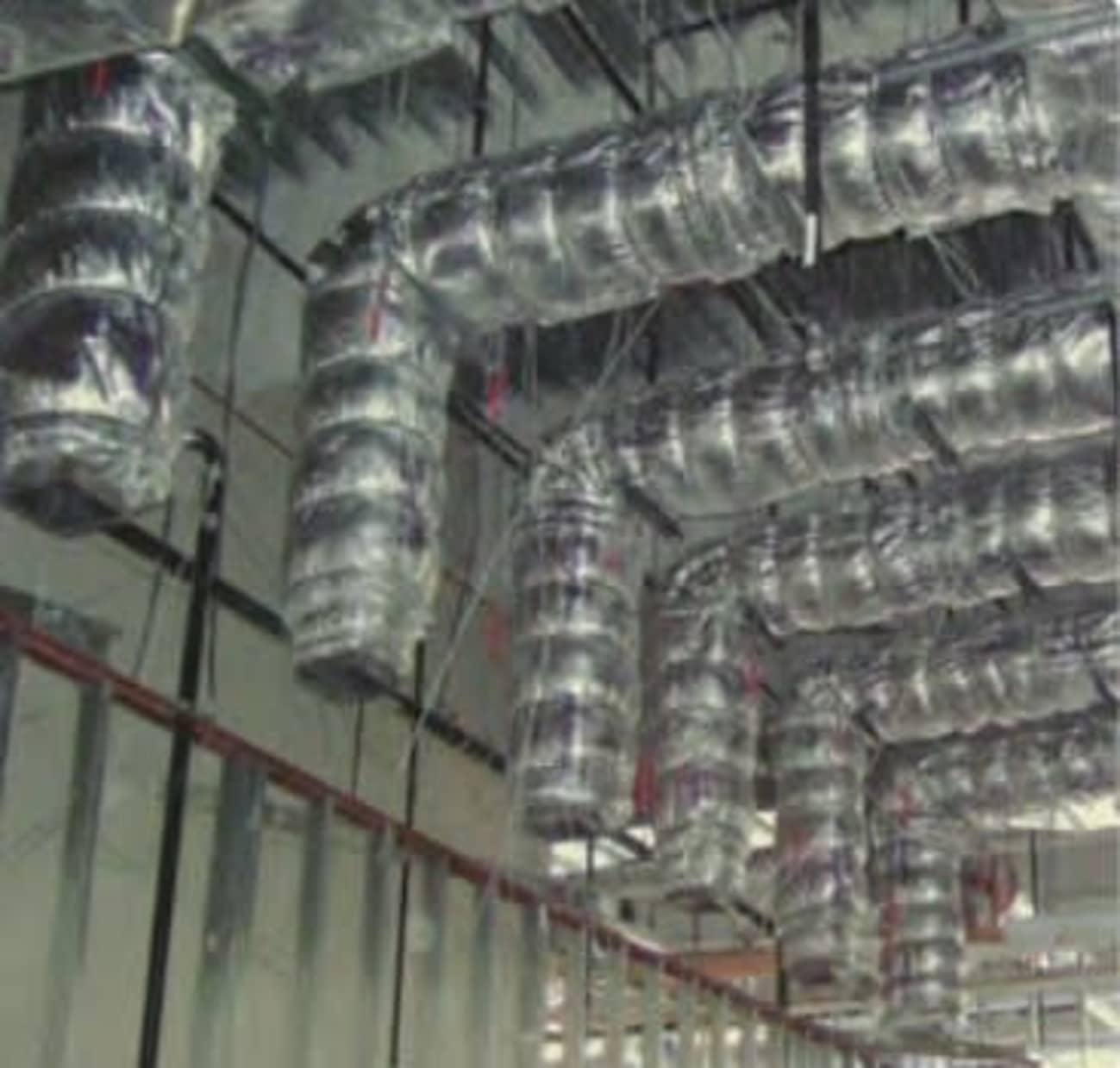

FireMaster Dryer Wrap System is tested and UL Listed for 1-hour fire resistance on light gage construction up to 7” diameter or 10x4” rectangular duct penetrating 1-hour rated wood joist gypsum floor therefore providing Owners, Architects, and Engineers a viable and cost effective solution for safely routing dryer exhausts from the laundry room to the exit of the building. At 1/2“ thick and 8 pound per cubic foot density, FireMaster Dryer Wrap System is 67% thinner, lighter, and appreciably more flexible than grease duct fire wraps currently available. The optimized thickness and approved 1” compression or overlap joints provide for significant installation cost and space savings.

Specifications

Manufacturer:
Morgan Advanced Materials Industries
Model:
Dryer Wrap
Country of origin:
UAE
Temperature Range (°C)
1148
Material
Aluminium Foil, Wire Cutters, 16 Gage Galvanized Steel Tie-wire, Serrated Knife
Flame Rating
ASTM E84
Standard
ASTM E814, ISO 6944, ULC Listing, ASTM E136
Fire Rated
1Hr
Features
Optimized Installation Cost, Thinner, Lighter, Flexibility
Test Method
ASTM D6329, ASTM C518
Thickness (mm)
25
