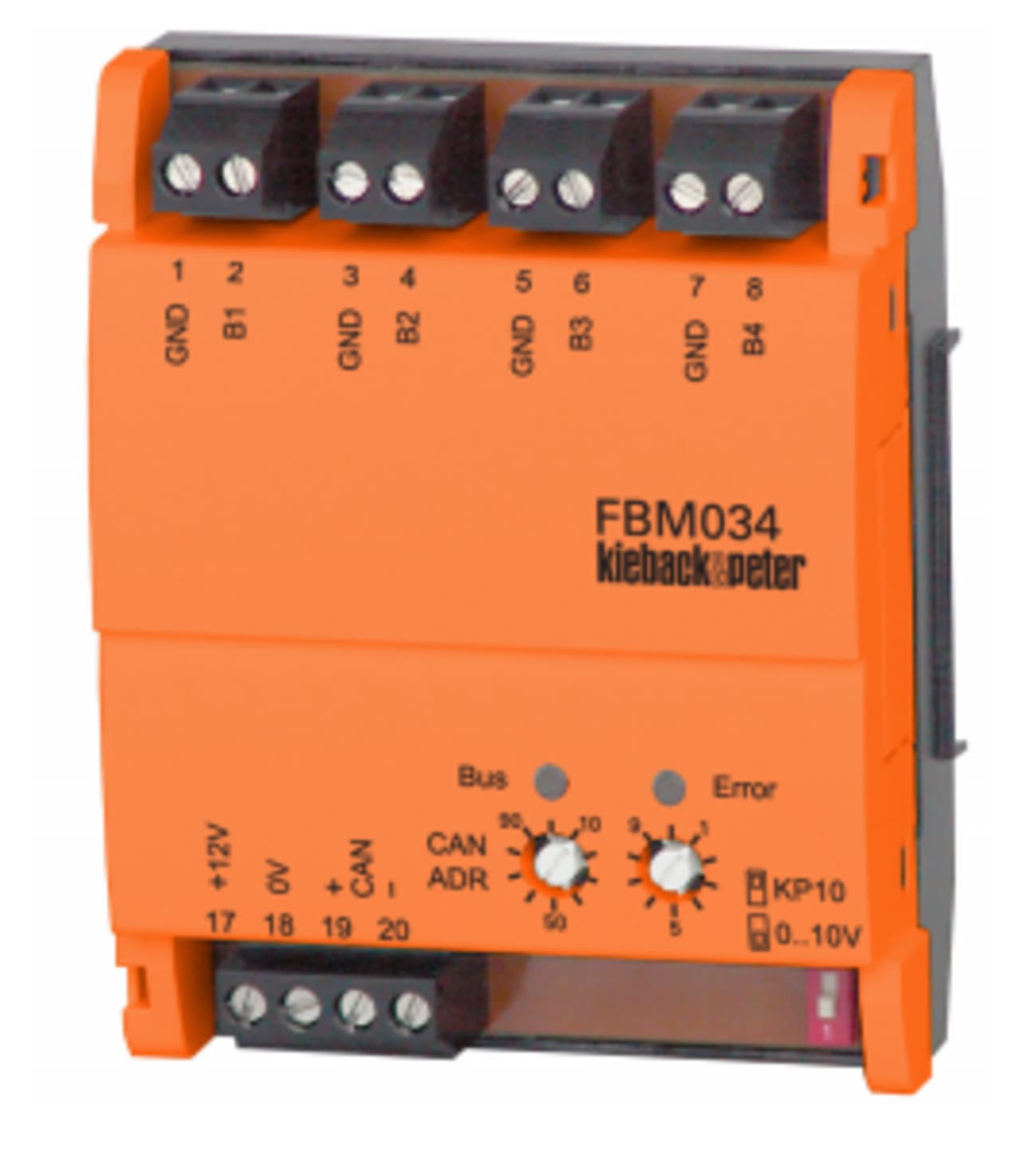

Fieldbus Output Module FBM034
Supplied by
National Fire Fighting Manufacturing Company
Product Description
Fieldbus Input Modules FBM034 comes with four analog inputs, fieldbus input modules FBM034 record the signals of remote devices in DDC3000 and DDC4000 controllers.
Application
- Outputs as voltage-free changeover switches. State monitoring via LEDs.
- Data is transferred between the controller and the output module via the fieldbus.
Technical Data
- Nominal voltage: DC 12 V ±20 % / 40 mA; 0.48 VA.
- Installation: On standard TH 35 x 7.5 rails for installation in the control panel or the wall-mounted enclosure.

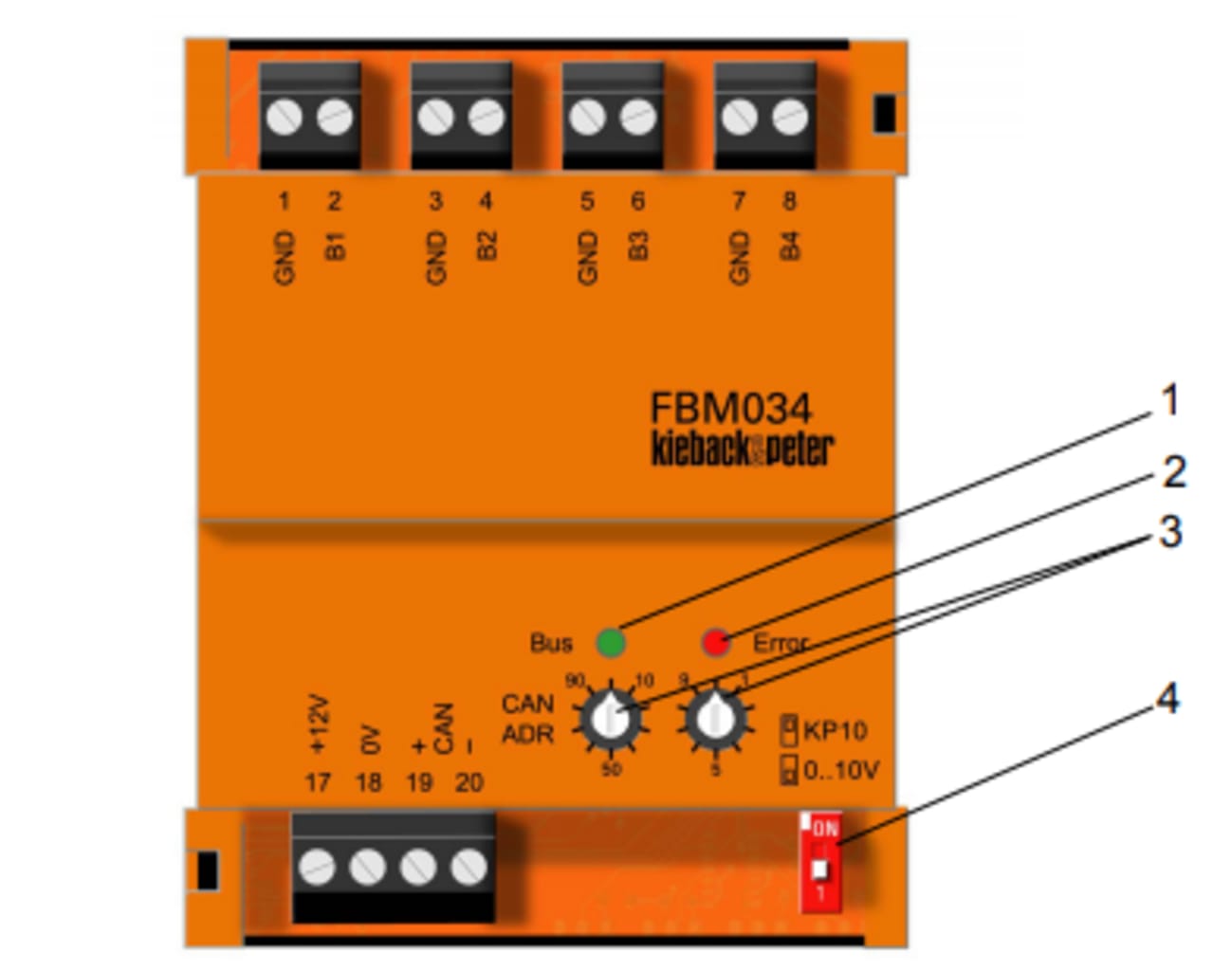

Function/Operation
1) Green LED
2) Red LED
3) Address switch – address setting 01 to 63
4) Measuring range switch inputs can be set to 0–10 V or KP10
Specifications
- Manufacturer:
- Kieback & Peter
- Model:
- FBM034
- Country of origin:
- Germany
- Interfaces
- 20 kBd, CAN, fieldbus 2000 m
- Housing Material
- Plastic
- IP
- 20
- Rated Impulse Voltage
- 800 V
- Weight
- 0.13 Kg, 0.8 Kg
- Ambient Temperature
- 0 °C..45 °C
