euroceil 3D Forms
Supplied by:
Euroceil Stretch Ceiling
Be it lighting or custom designer ceilings, euroceil's incredible ability to marry light and shape allows it to create ceilings, walls and custom lighting installations that aren't limited by shape and size. This is art, stretched into reality by the marvel of engineering.
KEY APPLICATIONS:

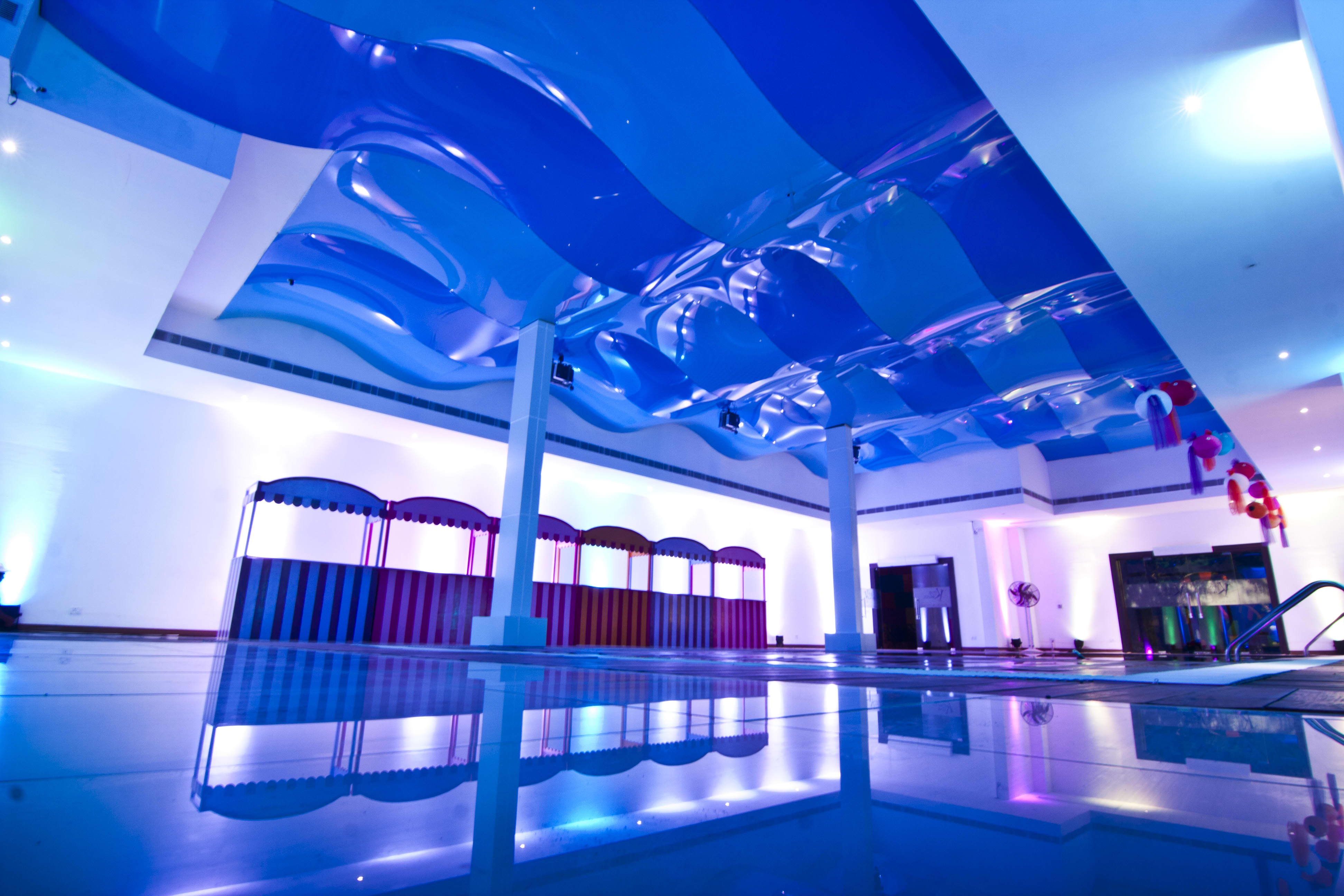

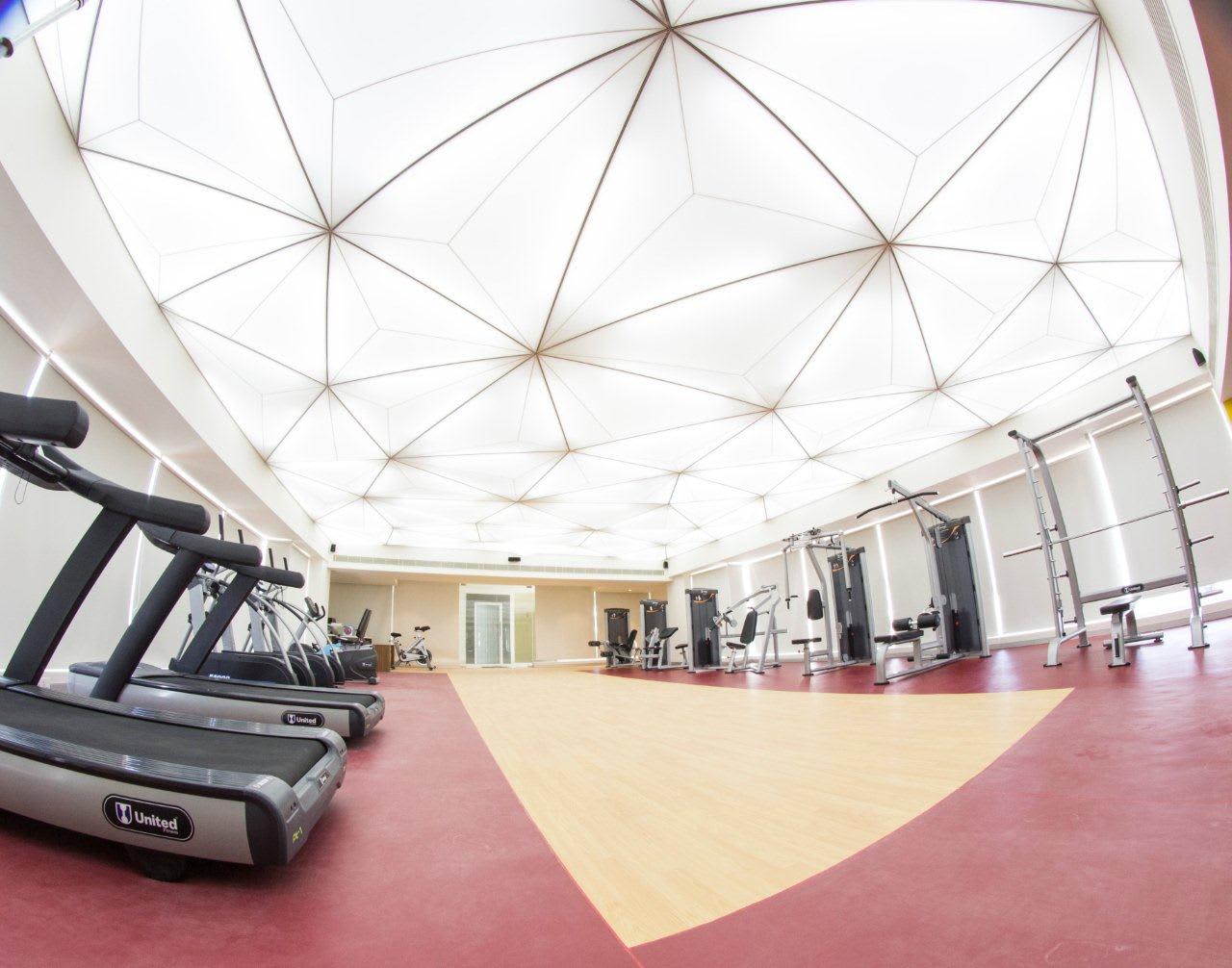

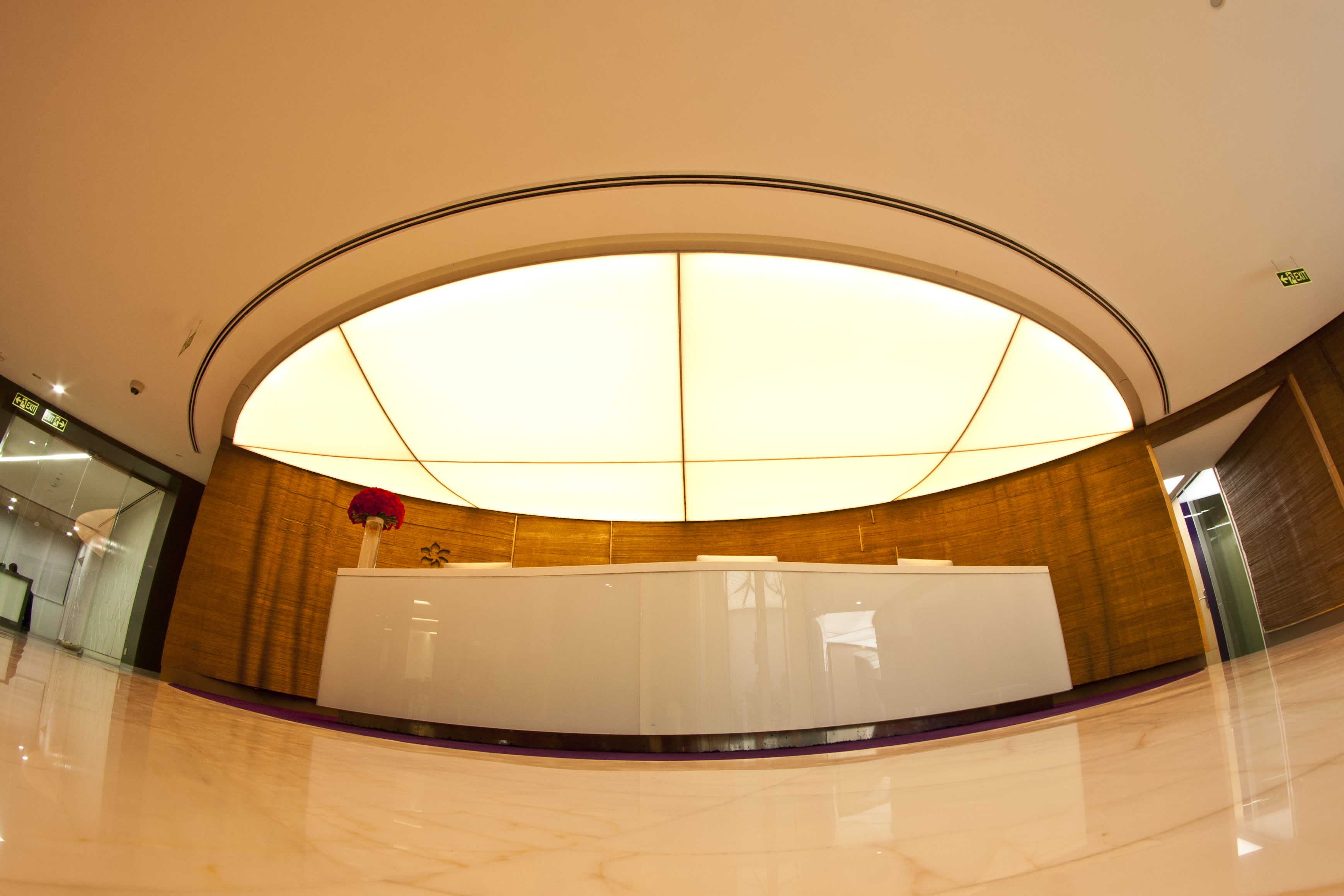

- 3 Dimensional Sculpted Ceilings or Walls.
- Customised Decorative Lighting.
- Standalone Forms like pillars, enclosures, etc.
Visit our website for more info - http://www.euroceil.com/3dforms.html
Specifications
| Manufacturer: | Renolit |
| Country of origin: | Germany |
| Weight | Approx 200 gms/sq.m |
| Thickness | 0.15mm to 0.2mm |
| Breaking Strength | 185 kg/cm2 (Length-wise), 220 kg/cm2 (Width-wise) |
| Elongation | 210% (Length-wise), 305% (Width-wise) |
| Hardness | 93.5 Shore A |
| Relative Humidity > 65% | 0.30 GR/H M2 mm |
| Relative Humidity < 65% | 0.45 GR/H M2 mm |
| Dimensional Stability | -5 deg Celsius to +55 deg Celsius |
| Thermal Co-effecient | 0.16 cal/m H C |
| Fire Safety Norms | B1/B2 in accordance with DIN 4102-1 |
| Acoustic Properties | Reverberation time at 125/ 250/ 500/ 1000/ 2000 Hertz reduces from 1.5s to 0.7s with designed perforations and insulation. |
| Recycling Properties | 100% Recyclable |
| Resistive Properties | Anti-Bacterial, Anti-Fungal, Anti-Static, Impermeable to Water & Steam, Insensitive to X-rays & Chemicals, Flame Retardant, Self extinguishing, Non-flammable, Energy Saving |
| Boxing Material | 25mm Plywood, 19mm Plywood |
| Boxing Depth (For LEDs) | 100 - 150 mm |
| Boxing Conditions | Airtight, ACP sheet or Internal painting with Enamel White Matte Finish |
| Boxing Suspension | Framed or Thread Rods |
