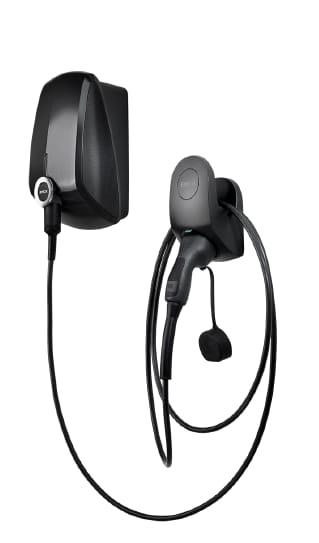

Elvi EVBox

Features

  • Elvi loves all cars Elvi evolves with every electric car, now and in the future. Thanks to its "click-on" features and modular design, Elvi adapts with a simply upgrade of the charging cable and charging capacity.

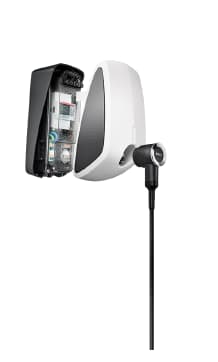

  • Elvi takes good care of itself Elvi’s modular design enables easier and faster installation for both the electrician and the user. Elvi consists of just three components: the wall dock, the station, and the cable. Once the wall dock is installed by an electrician, all you need to do is click the station and the cable into place and Elvi's ready to charge!
  • Elvi puts you in charge Connected to the powerful charging management app Hey EVBox, Elvi allows you to track and manage your charging sessions from the palm of your hand. Elvi also makes sure it consumes power in an efficient and cost-effective way.* *Only manual load balancing is available now.
  • Elvi makes your life easier Plug in the cable to charge, and unplug to drive. We’re keeping it safe and simple, so you can enjoy the full performance of your electric car with zero effort.

Specifications

Manufacturer:
Cubic Art Technologies (CATEC)
Country of origin:
Netherlands
Mounting
On the Wall, On the Pole
Standard Colors
Misty Black, Polar White
Weight
6 kg (13.2 lbs) - 1 phase 16A station with 4 m (13 ft) cable, 11 kg (24.2 lbs) - 3 phase 32A station with 8 m (26 ft) cable
Charging Capacity per Connector
3.7kW, 7.4kW, 11kW, 22kW (upgradable 3.7kW - 22kW)
Compliance
NEN 1010, EN/IEC 61851-1, EN/IEC 61851-22, EN/IEC 60364-4-41, EN/IEC 62196-1, EN/IEC 60335-1
Housing
Polycarbonate
Fixed Cable Length (m)
1

QR Code

QR code for Elvi EVBox
