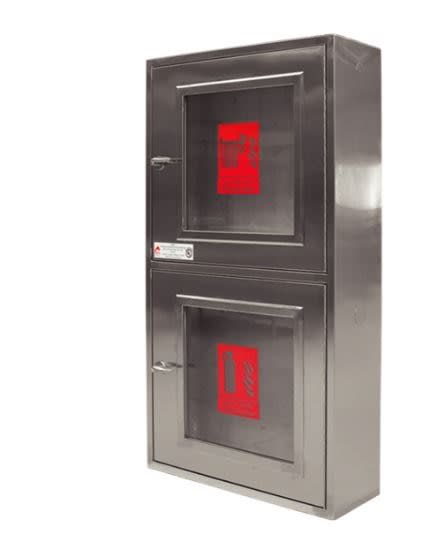

Double Vertical Cabinet NF/700FRC/DV

Double Vertical Cabinet eliminates the costly need to line the wall opening with fire-rated materials. It also provides the specifier assurance in maintaining the integrity of the wall penetration and in meeting building code specification.

Features :

• Fire Rating - F-Rating: 2 Hours, T-Rating: 2 Hours
• Door Type - Fire Rated Glass Door (Optional: Fire Rated Solid Door)

• Lock Type - Handle with Cam Latch (Optional: Round lock)

• Standard Compliance - Cabinets tested to ASTM E 814 / UL 1479 result in hourly rating of 2 hour for both flame ("F") and temperature transfer ('T').
• Listing - UL Classified

Cabinet to Accommodate

• Upper Compartment - Fire Hose Reel or Fire Hose Rack
• Lower Compartment - Fire Hose,Landing Valve,Water Branch Pipe,Portable Fire Extinguisher

Maximum Size

• Outside - 65"(H) x 35.4"(W) x 12.8"(D) 1650mm(H) x 900mm(W) x 325mm(D)
• Inside - 63.5"(H) x 34.2"(W) x 12.2"(D) 1618mm(H) x 869mm(W) x 310mm(D)
