Definity Dimmer Switches SIN143
Supplied by:
Scolmore International Limited

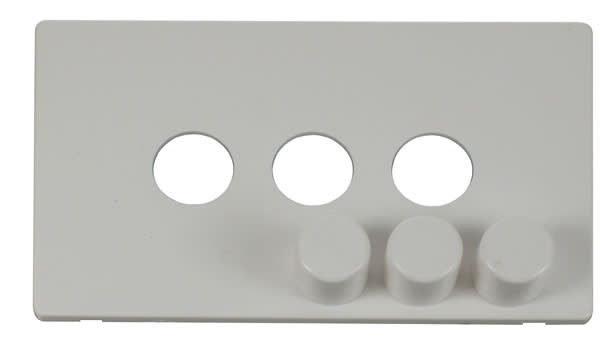

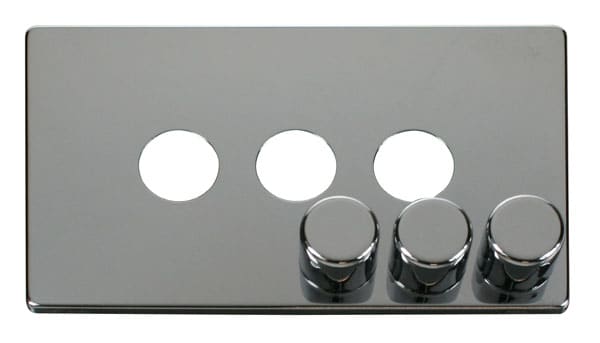

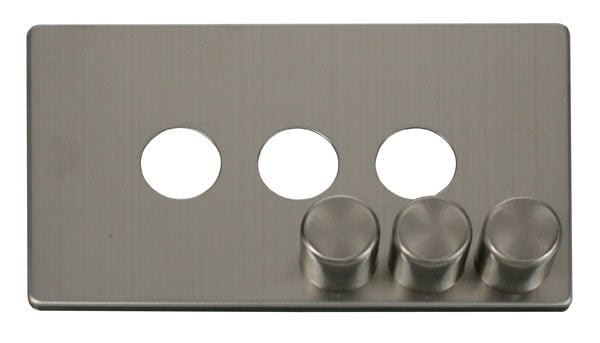

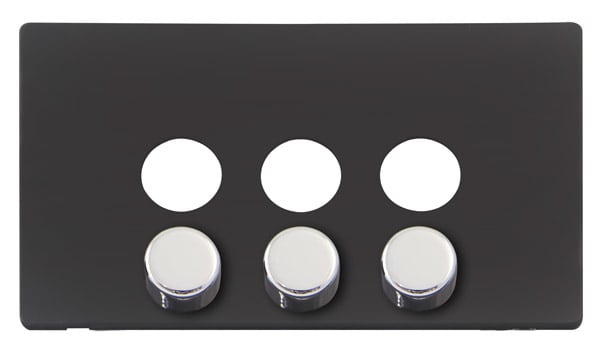

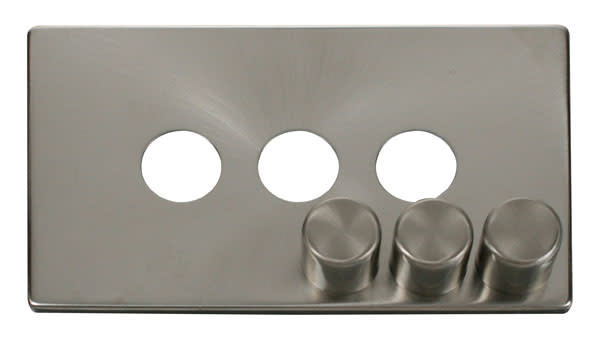

Definity Dimmer Switches SIN143 are smooth modern lines of the Definity accessory plate that will fit easily into traditional and contemporary designs alike. These switches are developed largely for use with tungsten, halogen and low voltage lamps. The dimmer switches are interchangeable with the dimmer modules used in the minigrid range. SIN143 is a 3 gang 2way 250W/VA resistive/inductive dimmer switch insert. SIN143PL has 3 gang 2 way dimmer plate insert 1200W max (double plate). SCP243 have 3 gang dimmer switch cover plate.
Additional Features:
- Load Types: Resistive / Inductive
- Module Type: Leading Edge Technology
- Modular: Yes (MD9001, MD9010, MD9022, MD9042)
- Voltage: 240V~ 50Hz
For additional details you can click on the link below:
scolmoredubai.com/products/definity/
Specifications
| Manufacturer: | Scolmore International Limited |
| Model: | SIN143 |
| Country of origin: | United Kingdom |
| Material | Polycarbonate, Steel & Yellow Passivated, Nylon, Mild Steel |
| Operational Temperature | -5 to +40 C |
| Warranty | 10yrs |
| Finishes | Brushed Steel (BS), Matt Black (BK), Polar White (PW), Polished Chrome (CH), Stainless Steel (SS), Matt Black with Chrome Knobs (BKCH) |
| IP Rating | 20 |
| Standards | BS EN 60669-2-1 : 2000 +A1, EN 61000 : 1995 + A1, EN 55015 : 2000 + A1 |
| Terminal Size | 3.5mm |
| Cable Size | 2 x 1.5mm² |
| Back Box Depth | 35mm - 47mm |
