Definity 45A Cooker Switch With Socket SIN500
Supplied by:
Scolmore International Limited

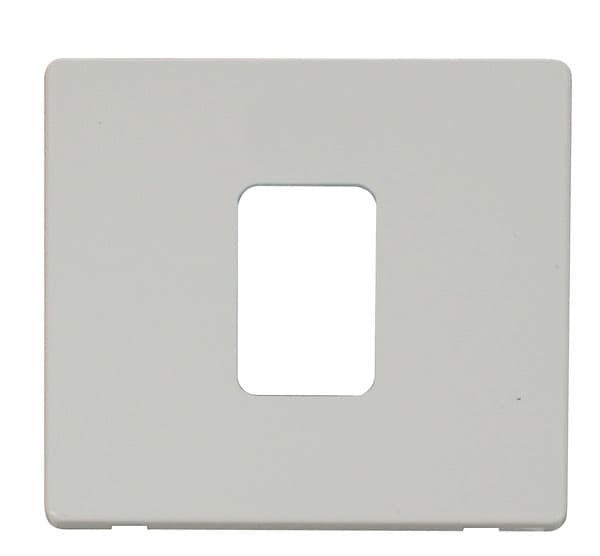

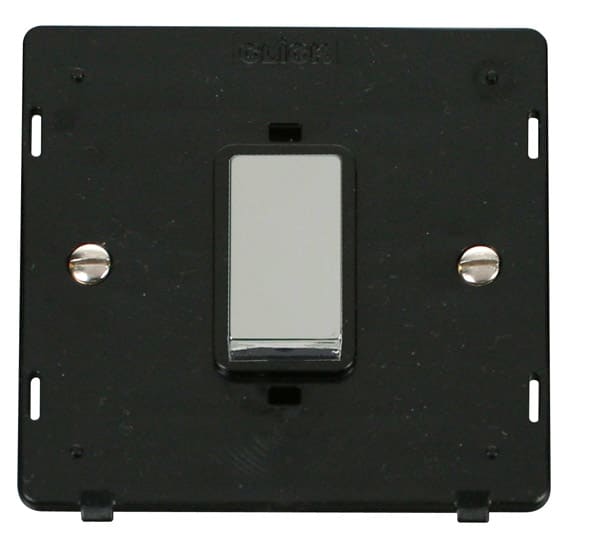

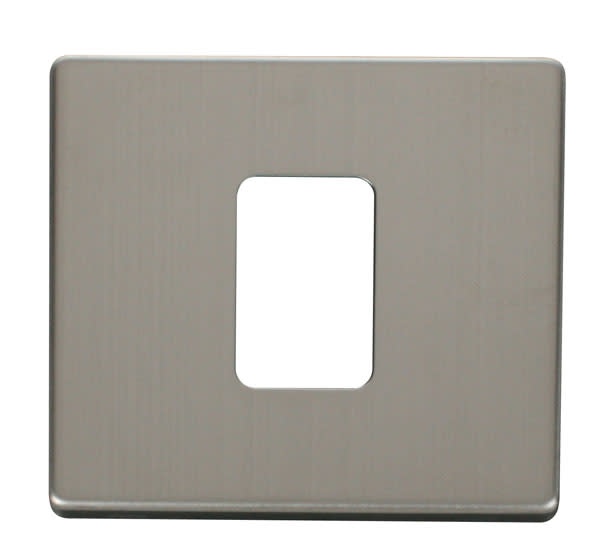

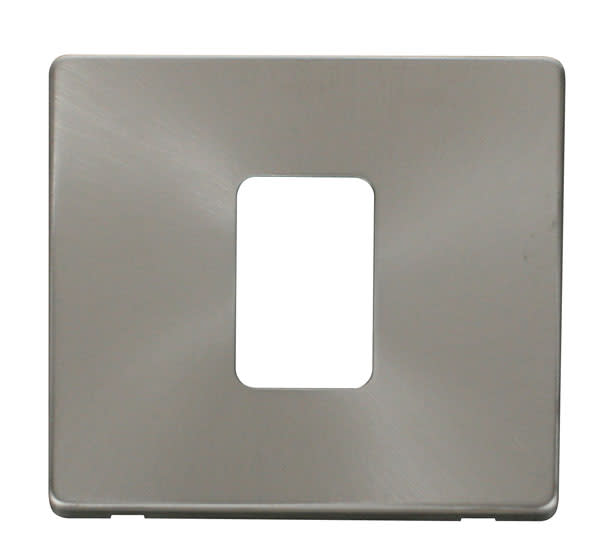

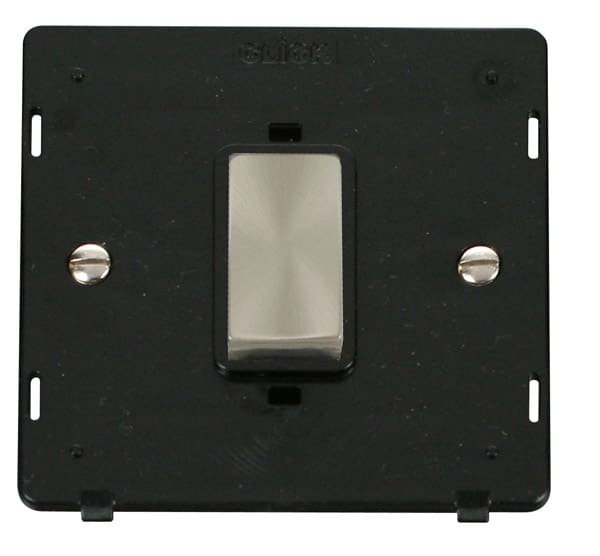

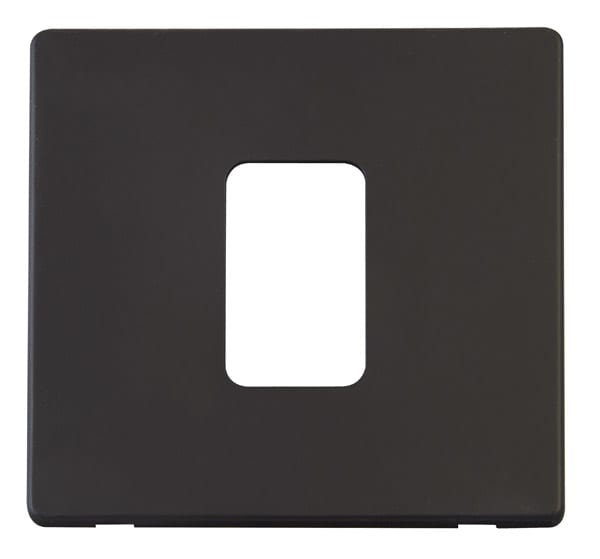

Definity 45A Cooker Switch with Socket SIN500 are smooth modern lines of the Definity accessory plate that will fit easily into traditional and contemporary designs alike. These switches are designed to fit effortlessly with the range, with simple installation to enhance the decor of any area. SIN500 is a 45A ‘Ingot’ 1 gang single cooker switch insert. SCP200 have 45A switch cover plate.
Additional Features:
- Voltage: 240V~ 50Hz
For additional details you can click on the link below:
scolmoredubai.com/products/definity/
Specifications
| Manufacturer: | Scolmore International Limited |
| Model: | SIN500 |
| Country of origin: | United Kingdom |
| Material | Polycarbonate, Steel & Yellow Passivated, Brass, Mild Steel, Urea |
| Operational Temperature | -5 to +40 C |
| Warranty | 10yrs |
| Finishes | Brushed Steel (BS), Matt Black (BK), Polar White (PW), Polished Chrome (CH), Stainless Steel (SS) |
| IP Rating | 20 |
| Current Rating | 45A |
| Torque Value | 2.5Nm |
| Standards | BS EN 60669-1:1999 + A1:2002 +A2:2008, BS 4177:1992, BS 1363-2:1995 + A4 : 2012 |
| Back Box Depth | 35mm - 47mm |
| Terminal Size | 6.5mm |
| Cable Size | 4 x 4mm², 3 x 6mm², 1x 10mm² |
