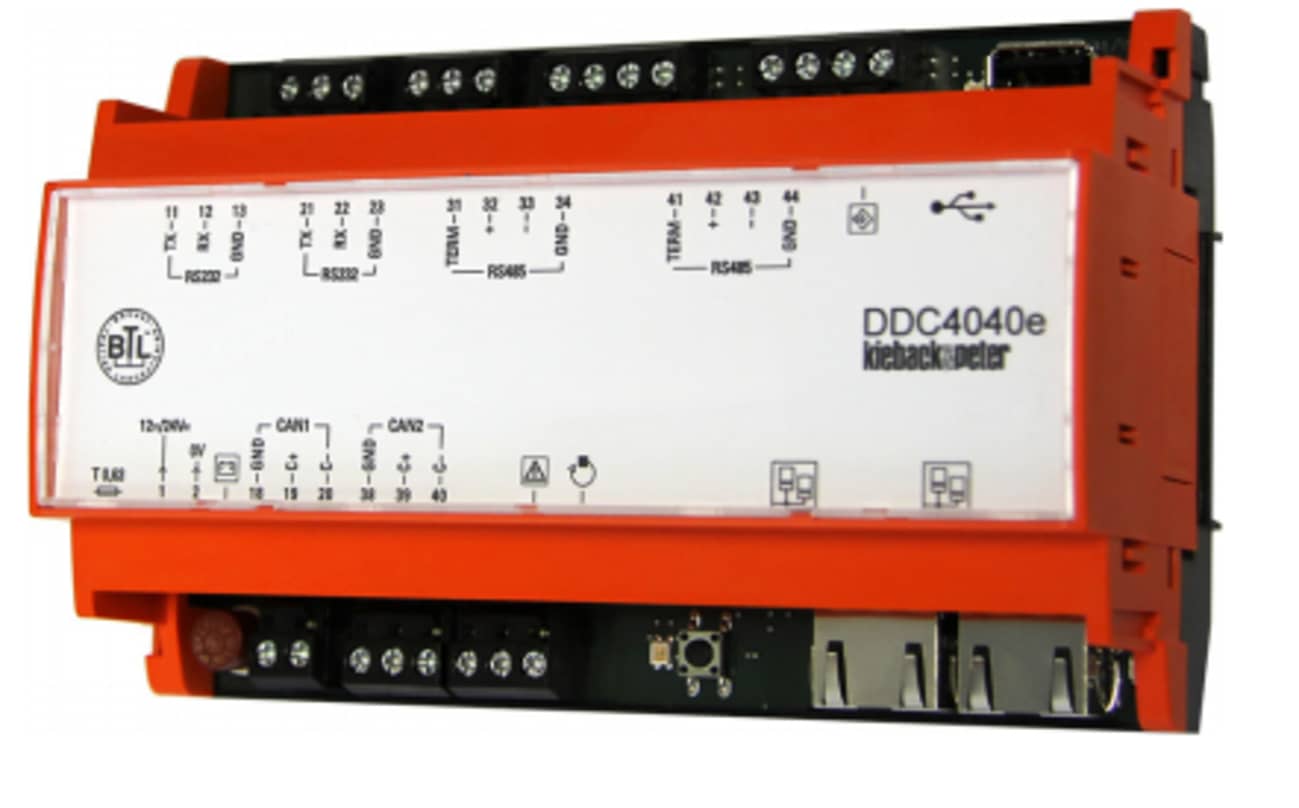

DDC Controller Automation Station DDC4040e
Supplied by
National Fire Fighting Manufacturing Company
Product Description
DDC4040e is a top hat rail mounted automation station.
Application
- Controller with BACnet communication
- Stand-alone station for closed-loop and open-loop control, optimizing and monitoring functions
- Customizable plain text for every parameter
- 12 DDC closed-loop control plants for heating and ventilation, can be expanded with software objects
- PLC functions, free and as fixed macros (hardware objects)
- Software objects for increasing energy efficiency and energy optimization
- Communication
- Error message memory
- Forwards messages to GSM-SMS and e-mail
- Embedded Linux operating system for proven, stable use
Technical Data
- Nominal voltage: 24V AC +/- 10 %; 50..60 Hz; 20 VA; 0,83 A or DC 24 V +/- 10%; 13 W; 0.54 A or 12V DC +/-10 %; 13 W; 1,08 A
- Fuse: Time-delay power fuse, 0.63 A
- Operating system: Embedded Linux
- Degree of protection: IP20
- Dimensions: WxHxD: 143.5 x 90 x 67 mm
Specifications
- Manufacturer:
- Kieback & Peter
- Model:
- DDC4040e
- Country of origin:
- Germany
- RAM
- 512 MB
- Interfaces
- USB socket, 2 CAN buses, 2 serial RS232, 2 RS485, 2 Ethernet RJ45
- Weight
- 0.26 kg
- Ambient Temperature
- 0 to 55 °C
- Rated Impulse Voltage
- 800V
- Display
- LED
- Power (W)
- 3.0
- Install Type
- Wall-mounted, Switch Cabinet
- Ambient Humidity
- 20 to 80% r.h.
- Network
- 10/100 Mbit/s
