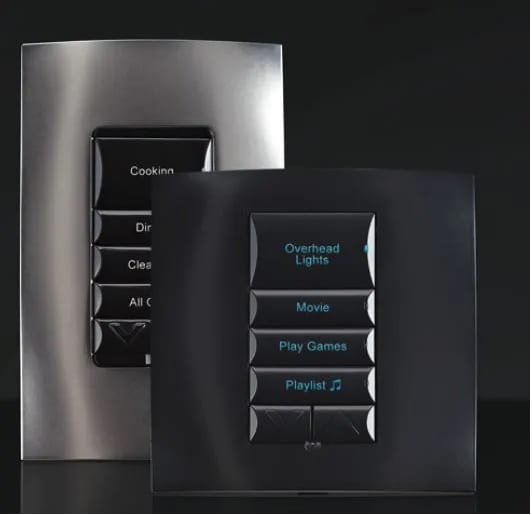

Control4 Wireless Keypad Dimmer C4-KD240

The Control4 Wireless Keypad Dimmer combines the dimming capabilities of the Control4 Wireless Adaptive Phase Dimmer with the flexibility of the Control4 Wireless Configurable Keypad. Unlock the power of one-touch automation simply by replacing an existing light switch with a Keypad Dimmer.

Details:

• Power Requirements: 220VAC +/-10%, 50/60 Hz
• Power Consumption: 2.02W
• Humidity: 5% to 95% non-condensing
• Control Communications: ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel, spreadspectrum radio

Features:

• Turns a standard light switch or dimmer into a fully customizable keypad and dimmer.
• Includes a button kit with every button necessary to make any of the 37 possible button configurations.
• Compatible with a variety of load types, including LEDs, incandescent, halogen, electronic low-voltage (solid-state) transformers, magnetic (iron core) low-voltage transformers, fluorescents, compact fluorescents.
• Supports both forward-phase (leading edge) and reverse-phase (trailing edge) dimming.
• Automatically detects load type and determines the appropriate dimming type.
• Protection circuitry prevents device damage in case of short circuit or excessive load.
• Continuously measures the energy being used by the attached load.
• Elegant, sophisticated design makes a beautiful addition to any home or business.
• Custom engraving available to clearly identify each button.
